AAC All Aluminium Conductor Standard EN 51082 Bare Conductor Cable Creep Resistance
Price:
0.19-10.99USD
MOQ:
0.5KM
Delivery Time:
15Days or More
Brand:
SHANCABLE
Product Description

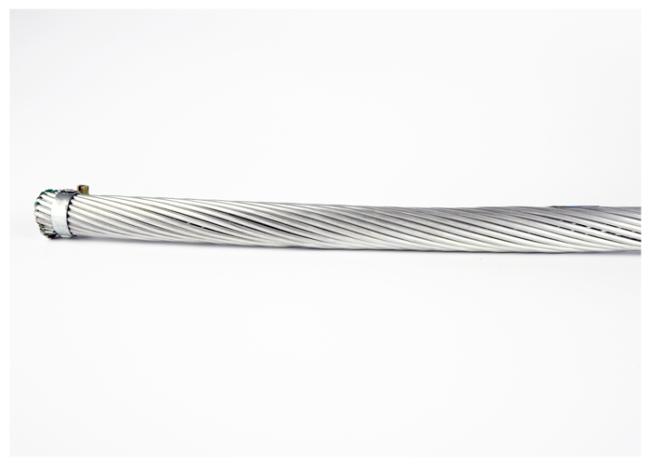

AAC All Aluminium Conductor Creep Resistance High Tension Strength
Specifications
AAC conductor widely used in power transmission lines with various voltage levels. since they have such good characteristics as simple structure, convenient installation and maintenance, low cost for the line, large transmission capacity and are also suitable for laying across rivers and valleys where special geographical teatures exist.
| AAC |
| EN 51082 | ||||||||
| Area | No. of | Diameter | Mass per unit | Rated | DC | |||
| Code Name | wires | Wire | Cond. | length | strength | Resistance | ||
| mm2 | mm | mm | kg/km | kN | Ω/km | |||
| Midge | 23.3 | 7 | 2.06 | 6.18 | 63.8 | 4.20 | 1.2249 | |
| Gnat | 26.9 | 7 | 2.21 | 6.63 | 73.4 | 4.83 | 1.0643 | |
| Mosquito | 36.9 | 7 | 2.59 | 7.77 | 100.8 | 6.27 | 0.7749 | |
| Ladybird | 42.8 | 7 | 2.79 | 8.37 | 117.0 | 7.28 | 0.6678 | |
| Ant | 52.8 | 7 | 3.10 | 9.30 | 144.4 | 8.72 | 0.5409 | |
| Fly | 63.6 | 7 | 3.40 | 10.2 | 173.7 | 10.49 | 0.4497 | |
| Bluebottle | 73.6 | 7 | 3.66 | 11.0 | 201.3 | 11.78 | 0.3880 | |
| Earwig | 78.6 | 7 | 3.78 | 11.3 | 214.7 | 12.57 | 0.3638 | |
| Grasshopper | 84.1 | 7 | 3.91 | 11.7 | 229.7 | 13.45 | 0.3400 | |
| Clegg | 95.6 | 7 | 4.17 | 12.5 | 261.3 | 15.30 | 0.2989 | |
| Wasp | 106.0 | 7 | 4.39 | 13.2 | 289.6 | 16.95 | 0.2697 | |
| Beetle | 106.4 | 19 | 2.67 | 13.4 | 292.4 | 18.08 | 0.2701 | |
| Bee | 132.0 | 7 | 4.90 | 14.7 | 360.8 | 21.12 | 0.2165 | |
| Hornet | 157.6 | 19 | 3.25 | 16.3 | 433.2 | 26.01 | 0.1823 | |
| Caterpillar | 185.9 | 19 | 3.53 | 17.7 | 511.1 | 29.75 | 0.1546 | |
| Chafer | 213.2 | 19 | 3.78 | 18.9 | 586.0 | 34.12 | 0.1348 | |
| Spider | 237.6 | 19 | 3.99 | 20.0 | 652.9 | 38.01 | 0.1210 | |
| Cockroach | 265.7 | 19 | 4.22 | 21.1 | 730.4 | 42.52 | 0.1081 | |
| Butterfly | 322.7 | 19 | 4.65 | 23.3 | 886.8 | 51.63 | 0.0891 | |
| Moth | 373.1 | 19 | 5.00 | 25.0 | 1025.3 | 59.69 | 0.0770 | |
| Drone | 372.4 | 37 | 3.58 | 25.1 | 1027.1 | 59.59 | 0.0774 | |
| Centipede | 415.2 | 37 | 3.78 | 26.5 | 1145.1 | 66.43 | 0.0695 | |
| Maybug | 486.1 | 37 | 4.09 | 28.6 | 1340.6 | 77.78 | 0.0593 | |
| Scorpion | 529.8 | 37 | 4.27 | 29.9 | 1461.2 | 84.77 | 0.0544 | |
| Cicada | 628.3 | 37 | 4.65 | 32.6 | 1732.9 | 100.54 | 0.0459 | |
