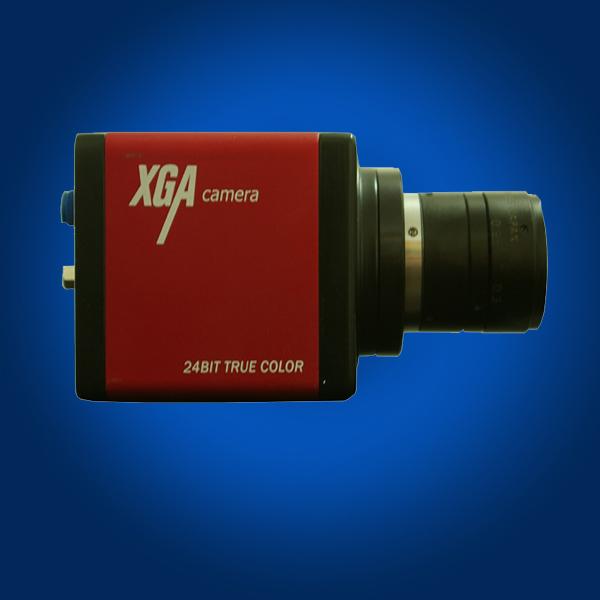

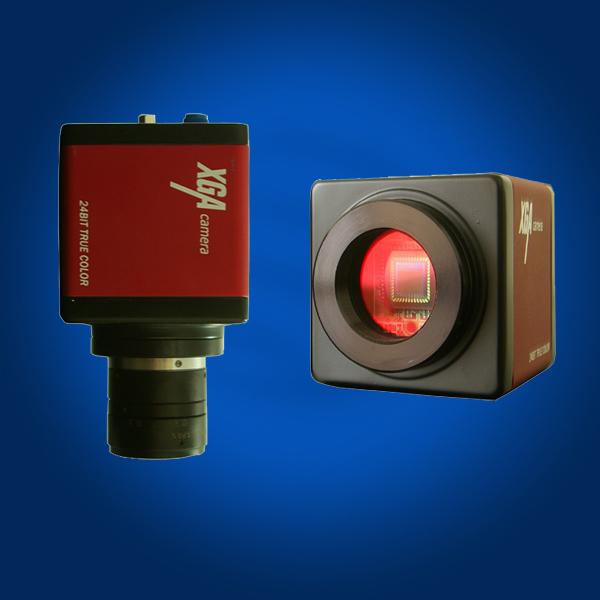

60fps High Framerate VGA Machine Vision Camera/Industrial Camera
60fps High Framerate VGA Machine Vision Camera/Industrial Camera
1.Camera directly to PC displayer XGA Format , Digital processing core, No computer needed;
2.Inside Overlay Graphic: 4 horizontal and 4 vertical lines; each single line can be changed into6 different colors and full screen shifted by manual operation;every line in one pixel width make it more precise for alignment;
3.Full frame 60fps@1024 768,@1280*1024,@1280*720,progressive scan; RGB 8:8:8, 24bit color deepth; High speed real-time vivid image greatly decrease operation fatigue;
1280x720 match16:9 displayer
1280x1024 match 5:4 displayer
1024x768 match 4:3 displayer
4.Full frame 60fps; progressive scan; RGB 8:8:8, 24bit color deepth; High speed real-time vivid image greatly decrease operation fatigue.
Specifications:
|
Item |
Specifications |
|
Camera type |
Color CMOS camera |
|
Image sensor |
1/2.5 inch color CMOS£¬1.3 megapixels |
|
Pixel size |
4.4umx4.4um |
|
Color Depth |
24 bits |
|
Cross Line |
8 Cross Line |
|
Output |
VGA. D-SUB 15 PIN |
|
Color |
24 bits |
|
Image-previewing rate |
1280*720 60fps; 1280*1024 60fps; 1280*768 60fps; |
|
Exposure |
Auto/Manual |
|
Camera interface |
Standard C/CS mount |
|
Power Supply |
DC 5V |
|
Working Temp |
-5C to +60C |
|
Size of box |
70*52*51mm |
Application Field:
PCB inspection,Semiconductor and other components inspection,Medical Image,Microscope
Image,Product Package,Quality Inspection,RobotVision etc
