Electric Submersible Pump Cable

EPDM/Alloy Lead/NBR/150℃(302°F)/Round

Products Description

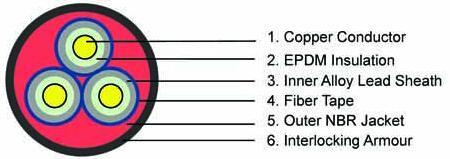

Oxygen-free solid(Stranded) bare copper conductor,EPDM Insulation ,Inner Alloy lead sheath,fiber tape covered completely over the sheath,full galvanized steel(or stainless steel or Monel)tape interlocking armour,round type.

Production Range

Voltage:3kv,4kv,5kv,6kv.

Temperature:The permissible and long-term working temperature is 150°C(302°F)

Performing Criterion

API RP 11S5-2008,11S6-2008;IEEE 1017,1018,1019;GB/T 16750-2008

Application Range

The cable is applicable for using in Electric submersible pump units with rated voltage less than 3kv or 6kv.It has the excellent function of oil-resistance,heat-resistance and corrosion-resistance.

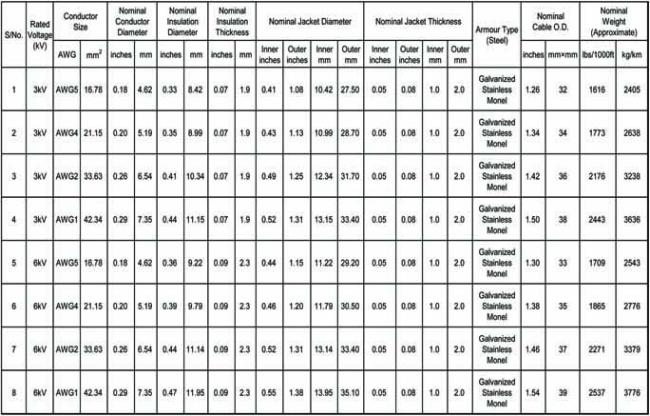

Specification & Parameters

We can also production customer's required cable according to the concrete specification.

Delivery &Packing

All steel corrugated reels with fixed base,outside wrapped by fuming wood;

Packing length according to customer's requirements.

Manufacturing Equipment

Testing Equipment

Product Qualification

API ISO,API Q1,API TS,CCC.
