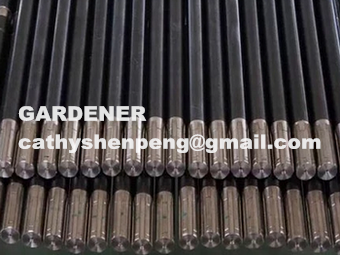

Submersible Oil Pump Shaft with Spline end and keyway with short delivery time
Submersible oil Pump Shaft with Inconel 718 and Monel K500 Material for Electric Submersible Pump System
Our pump shaft material is made by vacuum smelting process and in the manufacturing procedure we also use straightening machine and eddy
current testing equipment and ultrasonic flaw detection to make sure product mechanical property and product quality stability and uniformity.
No pinhole ,crack,slag inclusion and other some inside defect.
| Steel Grade | Supply Status |
| UNS N05500 | Cold working +Aging treatment |
Chemical Composition
| Grade | Element | Ni＋Co | Cu | Al | Ti | Mn | Fe | Si | C | S |
| UNS N05500 |
Min.value Max.Value |
63.0 - |
27.0 33.0 |
2.30 3.15 |
0.35 0.85 |
- 1.5 |
- 2.0 |
- 0.5 |
- 0.18 |
- 0.010 |
Mechanical Property and Hardness at the indoor temperature
| Grade | Status |
Diameter mm |
Tensile strength Min.Value N/mm2 |
Yield Strength Bias value 0.2% Min.Value N/mm2 |
Enlongation 2inch or 4D Min.Value % |
Hardness | |
|
Brinell Hardness 3000kg Min.Value |
Rockwell Hardness C Min.Value |
||||||
| UNS N05500 | Cold working +aging treatment | 10.0～25.4 | 1 000 | 760 | 15.0 | 300 | 32 |
| ＞25.4～40.0 | 965 | 690 | 17.0 | 280 | 29 | ||
Mechanical Property of UNS N07718
| Enlongation | lasting 690MPa |
Hardness HB |
|||||
| Temperature |
σ0.2 MPa |
σb MPa |
δ % |
ψ % |
τ h |
δ5 % |
|
| 20℃ | ≥1030 | ≥1280 | ≥12 | ≥15 | ≥346 | ||
| 650℃ | ―― | ≥1000 | ≥12 | ≥15 | ≥25 | ≥5 | |
More informations,please contact cathyshenpeng@gmail.com
