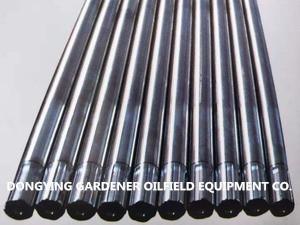

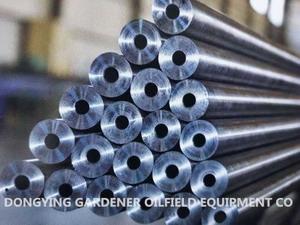

456series Electric Submersible hollow motor shaft for electrical submersible pumping equipment
375 series,540series,456series,562series Oil Electric Submersible hollow motor shaft for electrical submersible pumping equipment (ESP motor shaft series)
Application
It is applicable for oil electric submersible motor like 375 series,540series,456series,562series
Characteristics
The working mode is through continuous working, and the connector has good sealing performance. When the single motor shaft can not meet the requirements, it can be connected in tandem by the upper section, the middle section or the lower section. After the motor overspeed test, there is no permanent deformation or defect hindering the normal operation of the motor.
Specifications
| No. | Product Name | Diameter | Material | Length |
| 1 | Hollow motor shaft | Φ22.2 | AISI4135(35CrMo) | as per drawing |
| 2 | Hollow motor shaft | Φ25 | AISI4135(35CrMo) | as per drawing |
| 3 | Hollow motor shaft | Φ30 | AISI4135(35CrMo) | as per drawing |
| 4 | Hollow motor shaft | Φ35 | AISI4135(35CrMo) | as per drawing |
| 5 | Hollow motor shaft | Φ48 | AISI4135(35CrMo) | as per drawing |
| 6 | solid motor shaft | Φ25 | AISI4135(35CrMo) | as per drawing |
| 7 | Solid motor shaft | Φ30 | AISI4135(35CrMo) | as per drawing |
| 8 | Solid motor shaft | Φ35 | AISI4135(35CrMo) | as per drawing |
| 9 | Solid motor shaft | Φ48 | AISI4135(35CrMo) | as per drawing |
Size Range
Diameter range from 22.2mm~50mm.
Technical Performance
Tensile strength: >=875MPa
Yield strength:>=700MPa
Elongation% :within 2 inch
Brinell hardness: >=260HB
Delivery Requirement
Provide dimension and material test report
Storage and Transportation
Set the shelves neatly,do anti-rust treatment,fobidden soaking and bumping.
More informations please contact cathyshenpeng@gmail.com, we supply motor shaft with high quality,competitive price and good delivery time.
