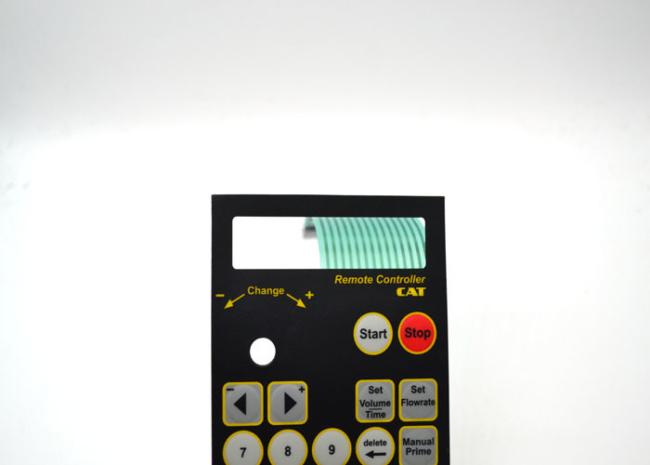

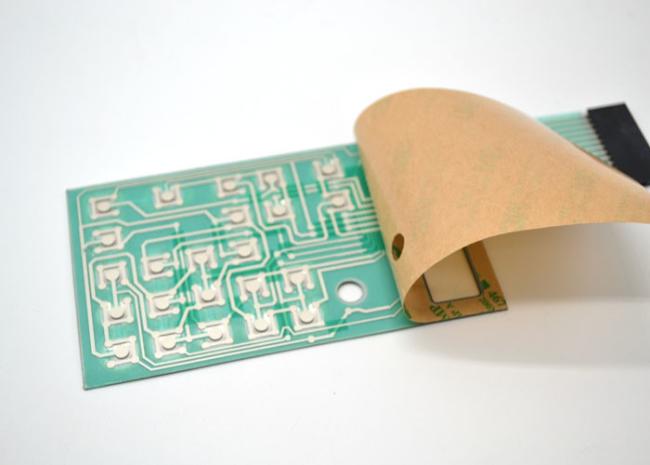

PET Material Embossed Tactile Metal Dome Membrane Switch Anti - Corrosion
Embossed tactile metal dome membrane switch / ZS-115 / Printing 4
colors on the graphic overlay
Product Description
This is a membrane swith which designed as the customer requirement, it is produced with
sverial production processes which being strictly monified. we are a professional manufacture
for more than 13 years old. high quality of every item will be guaranteed.Color printing is
most important,our worker choose it as color code, every item will be fine and packaged in
cartonboxes before shipment.
Electric parameters:
operating voltage:≤ 50VDC
working current:≤ 100mA
Contact resistance:0.5 ~ 5Ω
Insulation resistance:≥ 100MΩ (100VDC)
substrate voltage:2kDVC
spring time:≤ 6ms
loop resistance:20Ω
insulation ink voltage:100VDC
Physical parameters:
Active force: 0.3 to 3N
Lifespan: >1mil (non-tactile)
Hand speed: ≤5ms
Temperatures: -40 to +85°C
Humidity: 40/48hrs, 95% RH
Working altitude: 0 to 4,500m
We have the capacity to provide F150 PET Shield/ flat/ embossed push button keypad
membrane switch with translucent red LCD window, membrane switch panel with other
special requirements, such as Shielding, Windows/Lens Coating, Embossed button, Embossed
LEDs, UV glossy/matte/textured, EL,LED backlight,rubber keypad, FPC keypad, PCB keyboard
etc.
Industrial: Industrial Equipment, Vehicle Navigation, Automotive Machine, Army Command
System, Security System, POS
Membrane Switch Packing and Delivery Details:
1.100pcs usually putted into a poloybag,seperated by carbboard,5 bags packed into a 5-layer
carton.
2. According to customers' requirements.
Lead Time:
1. Lead time of samples:
Inital samples: 3-5 working days for graphic overlay, 5-7 working days for membrane
switch,7-15 working days for special membrane switch including
special product.It takes 5-7 working days to recise initial sample.(depended on actural
product.)
Final lead time is for your reference only , for more information ,pls contact me. Lead time
for mass production delivery:
2. Lead time of delivery:
Mass production for reqular membrane switches 7-15 working days after receipt of
PO.Repeat order , graphic overlay needs 5-7 working days.
Membrane switches take 10-30 working days .It takes 15-45 working days for special
material.We can ship partial shipments for big quantity orders.
Final ship date will be subject to company confirmation
