35mm Vibrating Diameter 3-4cm/H Concrete Vibrator Needle Hose Shaft Poker Nozzle

Price Negotiable

Price: $10 per set

MOQ: 10 set

Delivery Time: about 3 days for ready goods,about 15 days for OEM

Brand: YONGTUO

Product Description

35mm vibrating diameter 3-4cm/h concrete vibrator needle hose shaft poker nozzle

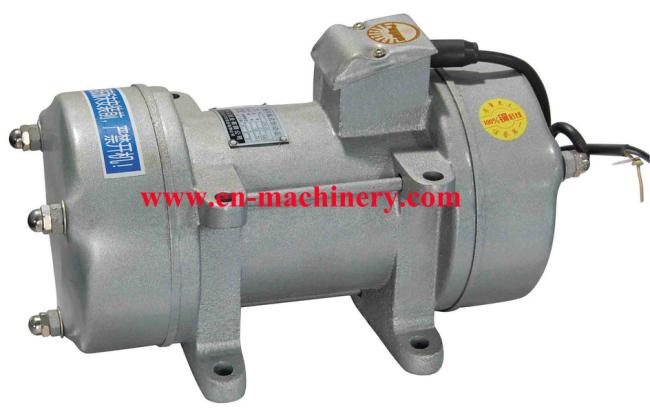

electric concrete vibrator / concrete vibrator construction machine/external concrete vibrators with motor

Specification	Floor installation size	Bottom shape size	Weight
0.75kw	135mm*110mm	360mm*285mm	1.8kg
1.1or1.5kw	165mm*140mm	420mm*330mm	4.5kg
2.2kw	185mm*160mm	540mm*370mm	6.3kg
3kw	200mm*165mm	600mm*420mm	7.5kg

Technical data

Model	Voltage (V)	Vibration cycle (RPM)	Sharp forces (kgf)	Power(KW)	Weight (KG)	Packing size (mm)
ZW-1	220/380	2840	100	0.25	6	210x150x160
ZW-2	220/380	2840	200	0.5	6.5	150x180x180
ZW-2.5	220/380	2840	250	0.55	6.5	150x180x180
ZW-3.5	220/380	2840	350	0.75	14.5	400x225x250
ZW-5	220/380	2840	500	1.1	22	400x225x250
ZW-7	220/380	2840	700	1.5	23	400x225x250
ZW-10	220/380	2840	980	2.2	34	500x255x285
ZW-13	220/380	2840	1380	3	45	560x280x310

Description of the concrete vibrator

1.main technical parameters of the concrete vibrator

Model	Power Supply	Output Power	Vibrating Amplitude	Centrifugal Force	Current	Weight
	v/hz	kw	mm	kn	A	kg
9	380/50	0.03-0.09	1.5-2.1	1-0	0.15-0.19	4.4
18	380/50	0.18	2.3	1	0.37	7.5
25	380/50	0.25	1.8	1.8	0.67	12
55	380/50	0.55	1.64	4.15	1.3	21.5
80	380/50	0.8	2	2.6	1.74	27
110	380/50	1.1	2	4.3	2.52	27
150	380/50	1.5	2.4	8.3	3.18	38
220	380/50	2.2	2.2	10	4.6	46
300	380/50	3	2.2	14	6.4	57

2.Feature of the concrete vibrator

1).Aluminum alloy casing, for better thermal diffusivity, which insure stability;

2).Copper wires for better electric conductiility;

3).T-series vibrator can adjust the vibrating amplitude according to use's need;

4).Modifiable design, made it working in 415V 50Hz/60Hz condition.

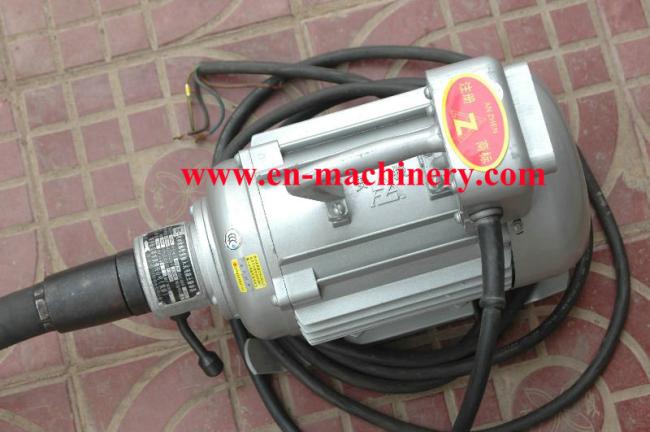

Pin type 1.5HP/220V Concrete Vibrator For Construction

Concrete vibrator , work with concrete vibrator shaft, Is suitable to the commodity concrete, widely applies to the bridge, the harbor construction, the large-scale dam, the water wheel power plant, the high level building base pours into post picket, crowded reinforcing steel bar net coagulation dirt wall and major and medium small architectural engineering.

our target is to serve for clients all over the world and offer the high-quality products and afforable price..we accept OEM service.
