Concrete Vibrator Concrete Poker Vibration Poker, Concrete Vibrator Rod, Concrete Vibrator

Price Negotiable

Price: $5 per pc

MOQ: 10 pcs

Delivery Time: about 15 days

Brand: YONGTUO

Product Description

Concrete vibrator concrete poker vibration poker, concrete vibrator rod, concrete vibrator

Internal concrete vibrator has the new design ,high speed with quality!

Specifications

1 on sale vibrator shaft hose

2 concrete vibrator shaft /needle/ rod

3 Dia.: 25mm,32mm,35mm,45mm,50mm,60mm,70mm

4 quick delivery

5 competitive price

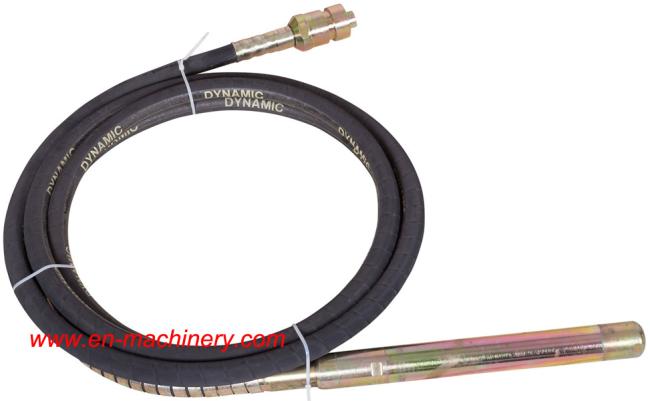

Concrete vibrator shaft

Internal concrete vibrator

Model		ZN35	ZN50	ZN70
Vibrating spear	Diameter (mm)	35	50	70
	Vibrating Frequency(HZ)	200	183	183
	Vibrating Amqlitude(mm)	0.8	1	1.2
	Weight(KG)	3	5	8
Flexible axie&hose	Flexible axis Dia.(mm)	10	13	13
	Hose Dia.(mm)	30	36	36
	Length(mm)	4000	4000	4000
Electromotr	Power(KW)	1.1	1.5	2.2
	Voltage(V)	380	380	380
	Rotate speeed(rpm)	2840	2840	2840
Overall Dimensions	L×W×H(mm)	320×180×280	320×180×280	320×180×280
Gross	(kg)	16	17	19

It was made of rubber, stee-wier net, canvas, lining spring.
Flexible rubber hoses are extensive used to the flexible tansmission of various machinery, such as the vibrator equipment, garden machine, water pump and other mechanical products. Can be used for all the non-linear motion machine.
It was made of rubber, stee-wier net, canvas, lining spring.

Model	Outer.dia	Inner.dia	Rubber tensile	Adhensive of inner rubber	Steel belt material	Steel belt hardness	Rubber hardness	Steel wire braid	Min.bending radius(mm)
JYG16	16mm	9mm	>1000 N/	50-60 N/	40Mn-65Mn	20HRC-30HRC	50-62	1	75
JYG20	20mm	10mm						1	80
JYG22	22mm	10mm						2	80
JYG24	24mm	13mm		60-65	20Mn-65Mn		75-80	according to the demand	100
JYG30	30mm	16mm							120
JYG32	32mm	18mm							150
JYG36	36mm	20mm							200
JYG42	42mm	25mm							250
