65Mn Flexible Shaft For Submersible Pump With Construction Machinery Tools Hand Tools Hand Machines

Price Negotiable

Price: $5.00 per pc

MOQ: 10 pcs

Delivery Time: about 20 days

Brand: YONGTUO

Product Description

65Mn Flexible Shaft for Submersible Pump with construction Machinery Tools hand tools hand machines

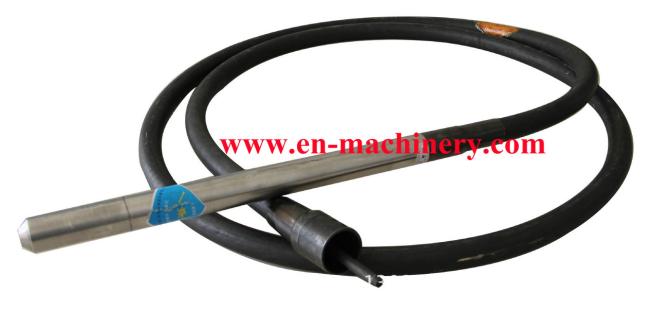

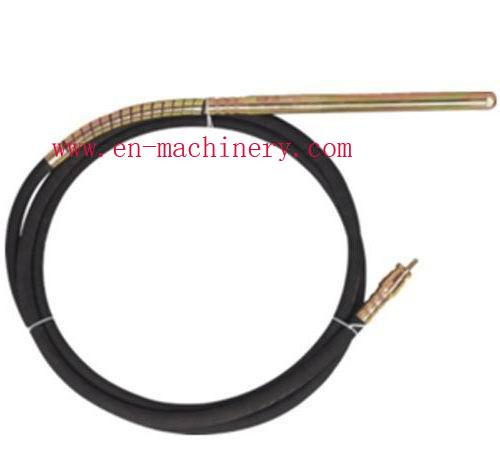

Description: flexible shaft ,concrete vibrator shaft

Structure: 70#~75# high-carbon steel wire
Direction of Twist: Levorotation and dextrorotation
Applicable Scope: Vibrating machine, automobile, motorbike, counter, revolution counter, electric tools, gardening machinery mower, and various mechanical flexible rotations.
Function: Smooth, flexible, highly-elastic, and wear resistant
Technical Parameters

Diameter (mm)	Tolerance (mm)	Number of Layers	Loading Moment (N · m) (Sample 500mm Long)	Weight (kg/ 100m)
2.0	+0.02 -0.02	3/5	0.8	1.8
2.5		3/5	1.0	2.8
3.2		3/5	1.3	4.6
3.8		3/5	1.5	6.5
5.0	+0.00 -0.05	3/4/5	1.8	11.3
6.0		3/4/5	2.4	16.2
6.5		4/5/7	2.9	18.7
8.0		4/5/6/7	7.5	28.8
10		4/5/6/7	22.5	45.5
12		4/5/6/7	39.0	66.5
13		4/5/6/7	50.5	77.5
16		4/5/6/7	115.0	114
18		4/5/6/7	160	145
The flexible shafts not listed in the chart can be customized

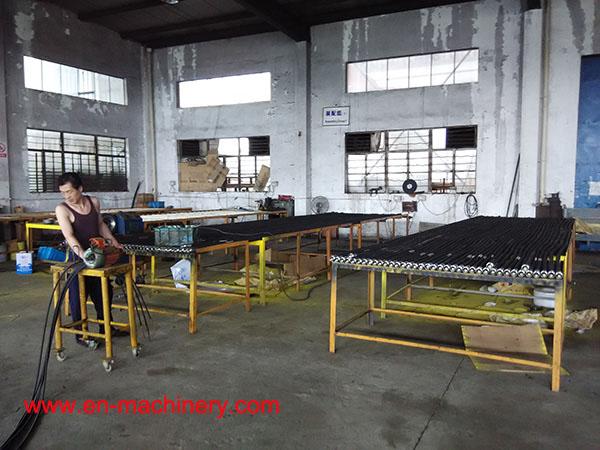

Welcome to visit factory warmly. can send samples for testing in advance.
can supply OEM service with your own logo.
Supply high quality & the most competitive price for you.

You may interested in other products: concrete vibrator,mini concrete mixer
