Sewing liquid No. 2 filter bag High dirt holding capacity Corrosion resistance High flow rate
Price:
www.silkscreenmesh.com
MOQ:
30m
Delivery Time:
2-5Days
Brand:
SPRING
Product Description

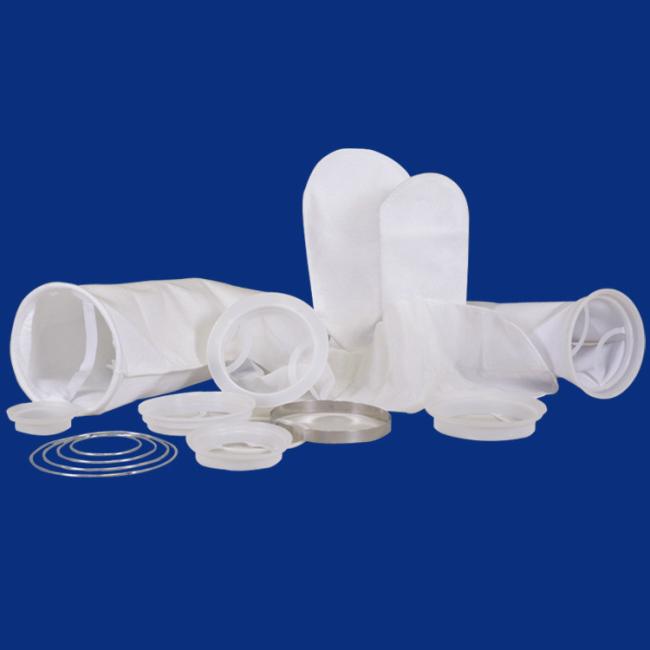

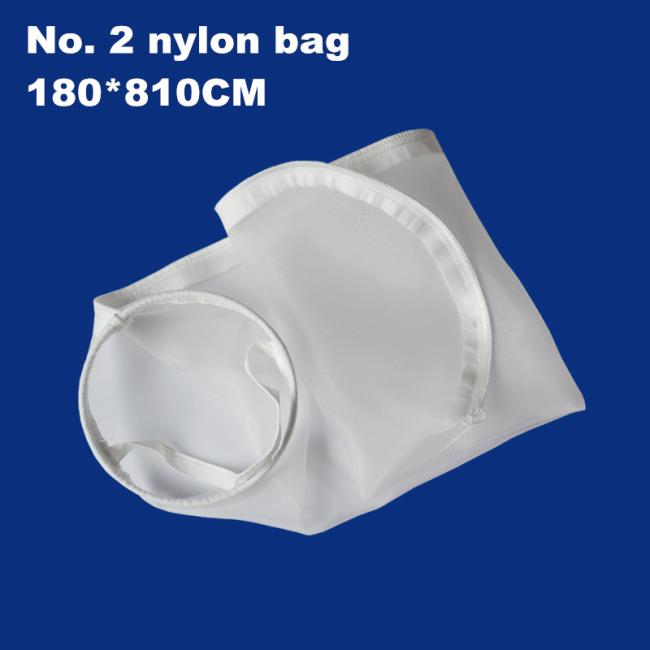

Sewing liquid No. 2 filter bag High dirt holding capacity Corrosion resistance High flow rate
Our company produces a variety of liquid filter bags, nylon mesh liquid filter bags are also very popular with customers, the purchase volume is also relatively large. We offer a wide range of micron grades and materials to choose from. The filter bag is seamed at the bottom and side to prevent pinhole leakage.
Filter principle:
The liquid filtration bag of Niijing uses the principle of surface filtration to isolate the particles larger than the mesh of the mesh. The non-deformed monofilament thread is woven into a net according to the specific pattern. The intersection of the wire is welded to increase the strength, and the filtration level is achieved. Absolute accuracy, suitable for high precision requirements in the paint, ink, resin and coating industries, and especially suitable for water-based paints.
Advantages of nylon filter bags:
Nylon monofilament can be cleaned repeatedly, saving filtration costs. This type of product is suitable for low precision roughing applications.
Filter accuracy selection:
25-1200μm, 25 (500 mesh), 50 (270 mesh), 80 (200 mesh), 100 (140 mesh), 125 (120 mesh), 150 (100 mesh), 200 (76 mesh), 250 (60 mesh) ), 300 (50 mesh), 400 (40 mesh), 600 (30 mesh), 800 (15 mesh), 1000 (7)
Nylon filter bag application field
Solid-liquid separation and treatment in the fields of petrochemical, light industrial food, metallurgy, electronics, pharmaceutical, etc.
In the automotive industry, pre-cleaning, electrophoretic paint, spray rinse water, circulating water, etc.
Solvent purification treatment, resin treatment and wastewater treatment in the three paint industry
Product specifications
| Type | Weave | Mesh Count (cm) |
Mesh Count (/inch) |
Wire Diameter (um) |
Mesh Opening(um) | Open Area (%) |
Thickness (um) |
| PA-4/1950 | PW | 4 | 10 | 550 | 1950 | 61 | 1096 |
| PA-5/1500 | PW | 5 | 13 | 500 | 1500 | 56 | 998 |
| PA-6/1267 | PW | 6 | 15 | 400 | 1267 | 58 | 796 |
| PA-7/1079 | PW | 7 | 18 | 350 | 1079 | 57 | 691 |
| PA-8/900 | PW | 8 | 20 | 350 | 900 | 52 | 697 |
| PA-9/861 | PW | 9 | 24 | 250 | 861 | 60 | 492 |
| PA-10/750 | PW | 10 | 25 | 250 | 750 | 56 | 494 |
| PA-12/533 | PW | 12 | 30 | 300 | 533 | 41 | 590 |
| PA-14/514 | PW | 14 | 35 | 200 | 514 | 52 | 391 |
| PA-16/425 | PW | 16 | 40 | 200 | 425 | 46 | 393 |
| PA-18/356 | PW | 18 | 45 | 200 | 356 | 41 | 395 |
| PA-20/300 | PW | 20 | 50 | 200 | 300 | 36 | 396 |
| PA-24/267 | PW | 24 | 60 | 150 | 267 | 41 | 292 |
| PA-28/207 | PW | 28 | 70 | 150 | 207 | 34 | 295 |
| PA-30/213 | PW | 30 | 76 | 120 | 213 | 41 | 230 |
| PA-32/213 | PW | 32 | 80 | 100 | 213 | 46 | 186 |
| PA-36/178 | PW | 36 | 90 | 100 | 178 | 41 | 189 |
| PA-40/150 | PW | 40 | 100 | 100 | 150 | 36 | 192 |
| PA-44/127 | PW | 44 | 110 | 100 | 127 | 31 | 195 |
| PA-48/128 | PW | 48 | 120 | 80 | 128 | 38 | 150 |
| PA-56/119 | PW | 56 | 142 | 60 | 119 | 44 | 96 |
| PA-59/109 | PW | 59 | 150 | 60 | 109 | 42 | 110 |
| PA-64/96 | PW | 64 | 163 | 60 | 96 | 38 | 116 |
| PA-72/89 | PW | 72 | 183 | 50 | 89 | 41 | 90 |
| PA-80/75 | PW | 80 | 203 | 50 | 75 | 36 | 93 |
| PA-88/71 | PW | 88 | 224 | 43 | 71 | 39 | 70 |
| PA-96/61 | PW | 96 | 244 | 43 | 61 | 34 | 74 |
| PA-100/57 | PW | 100 | 254 | 43 | 57 | 32 | 75 |
| PA-104/53 | PW | 104 | 264 | 43 | 53 | 31 | 76 |
| PA-110/48 | PW | 110 | 280 | 43 | 48 | 28 | 78 |
| PA-120/40 | PW | 120 | 305 | 43 | 40 | 23 | 80 |
| PA-130/34 | PW | 130 | 330 | 43 | 34 | 19 | 81 |
| PA-140/33 | PW | 140 | 355 | 38 | 33 | 22 | 72 |
| PA-150/28 | TW | 150 | 380 | 39 | 28 | 17 | 73 |
| PA-157/25 | TW | 157 | 400 | 39 | 25 | 15 | 74 |
| PA-165/30 | TW | 165 | 420 | 30 | 30 | 25 | 54 |
| PA-200/21 | TW | 200 | 500 | 30 | 21 | 17 | 56 |
| PA-212/8 | TW | 212 | 540 | 39 | 8 | 3 | 75 |
| PA-240/3 | TW | 240 | 600 | 39 | 3 | 1 | 76 |
| The above is theoretical data, for your reference only! | |||||||
