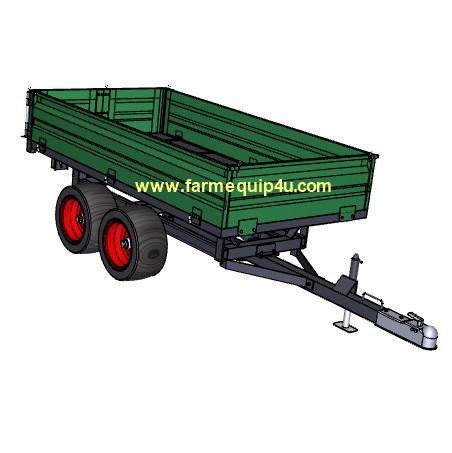

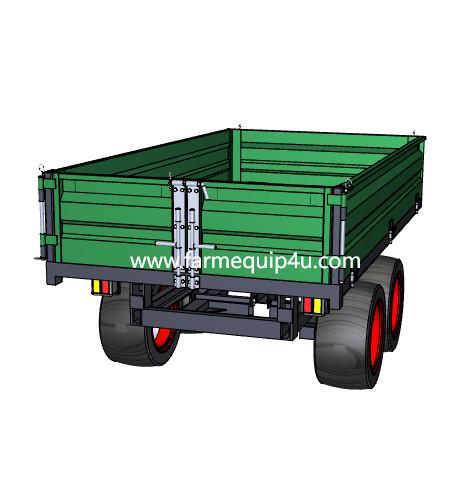

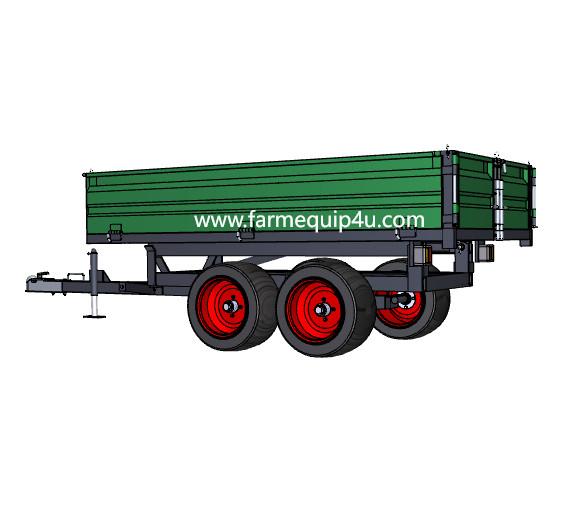

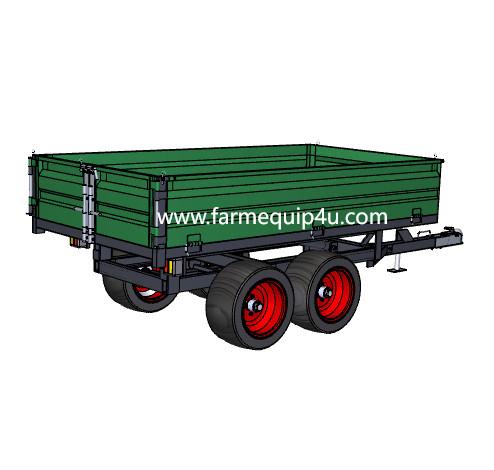

Farm Trailer With Swing Tailgate,Farm transport tractor tow behind trailer,sansen Trailer,farm machinery manufacturer
Price:
Negotiable
MOQ:
10
Delivery Time:
35days
Brand:
SANSEN FARMEQUIP4U
Product Description
Uses:
*Tipping Trailers are great around any small acreage or hobby farm and can be useful every day of years.
*With a hydraulic lift for tipping they are perfect for transporting soil,sand,feed,fertilisers,tools,small machinery and trees for planting.
*Perfect for transporting hay to all corners of your property.
Features:
*Opening rear flap for easy tipping as you drive
*With a hydraulic cylinder ram and hose connecting,with tail lights.
*Side and rear panels easy removable.
*No highway.
| Model | 0.5T2W | 1T2W | 1.5T2W | 2T2W | 3T2W | 4T2W |
| Internal Length | 1500mm | 2200mm | 2200mm | 2400mm | 2800mm | 2800mm |
| Internal Width | 900mm | 1170mm | 1170mm | 1280mm | 1500mm | 1500mm |
| Internal Height | 380mm | 380mm | 380mm | 380mm | 380mm | 500mm |
| Max Load | 500kgs | 1000kgs | 1500kgs | 2000kgs | 3000kgs | 4000kgs |
| Drawbar Type | rectangle-frame | rectangle-frame | rectangle-frame | rectangle-frame | rectangle-frame | rectangle-frame |
| Tire Size | 16*7.5-8 | 20*10-8 6p | 7.00-12 | 10.0/75-15.3 6tl | 10.0/75-15.3 8tl | 10.0/75-15.3 16tl |
| N.W/G.W | 160/180kgs | 310/335kgs | 320/345kgs | 380/410kgs | 590/630kgs | 700/740kgs |
| Packing Size | 1520*950*380 mm | 2280*1220*455 mm | 2280*1220*455 mm | 2420*1380*480 mm | 2900*1580*500 mm | 2900*1600*750 mm |
| Tractor Hp | 18-25hp | 18-30hp | 18-40hp | 25-40hp | 30-50hp | 30-60hp |
| Model | 2T4W | 3T4W | 4T4W |
| Internal Length | 2400mm | 2800mm | 2800mm |
| Internal Width | 1280mm | 1500mm | 1500mm |
| Internal Height | 380mm | 380mm | 500mm |
| Max Load | 2000kgs | 3000kgs | 4000kgs |
| Drawbar Type | rectangle-frame | rectangle-frame | rectangle-frame |
| No. of Axle | 2 | 2 | 2 |
| Max Lift Angle | 56° | 56° | 56° |
| Tire Number | 4 | 4 | 4 |
| Tire Size | 20*10-8 | 7.00-12 | 10.0/75-15.3 6tl |
| N.W/G.W | 357/385kgs | 575/605kgs | 730/760kgs |
| Packing Size | 2420*1380*480mm | 2900*1580*500mm | 2900*1600*750mm |
| Tractor Hp | 25-40hp | 30-50hp | 30-60hp |
