8KW,15KW,17KW Heating and Cooling water to water Heat Pump
Price:
500-8000
MOQ:
1 PCS
Delivery Time:
15 working days
Brand:
TRT
Product Description
| TRT-30HC-WWHP | TRT-30HC-WWHP | TRT-50HC-WWHP | TRT-60HC-WWHP | |
| Body size(L*W*H) | 810*635*1000 | 810*635*1000 | 810*635*1000 | 810*635*1000 |
| Compressor | Copeland ZW34KAE*1 | Copeland ZW34KAE*1 | Copeland ZW61KAE*1 | Copeland ZW72KAE*1 |
| Refrigerant | R407C/1.8kg*1 | R407C/1.8kg*1 | R407C/2.4kg*1 | R407C/2,8kg*1 |
| Power Supply | 220V/50HZ | 380V/50HZ | 380V/50HZ | 380V/50HZ |
| Condenser | Tube in Tubeφ42 | Tube in Tubeφ42 | Tube in Tubeφ42 | Tube in Tubeφ42 |
| φ42*3 Meter | φ42*3 Meter | φ42*5 Meter | φ42*6 Meter | |
| Evaporator | Shell and Tubeφ140 | Shell and Tubeφ140 | Shell and Tubeφ168 | Shell and Tubeφ219 |
| 68-φ9.52*500 | 68-φ9.52*500 | 88-φ9.52*500 | 104-φ9.52*500 | |
| Liquid Storage Tank | 145VW-B04-A*1 | 145VW-B04-A*1 | 145VW-B04-A*1 | 145VW-B04-A*1 |
| Gas-liquid separator | LF8W5A-03A*1 | LF8W5A-03A*1 | KFR120WLG-A*1 | KFR120WLG-A*1 |
| Thermostatic expansion valve | Danfoss3RT*1 | Danfoss3RT*1 | Danfoss5RT*1 | Danfoss6RT*1 |
| AC Contactor | (220V-25A)*1 | (220V-18A)*1 | (220V-18A)*1 | (220V-25A)*1 |
| Controller | DF1SS-G5 | DF1SS-G5 | DF1SS-G5 | DF1SS-G5 |
| Low Pressure Switch | 0.05/0.15MPa | 0.05/0.15MPa | 0.05/0.15MPa | 0.05/0.15MPa |
| High Pressure Switch | 2.6/3.2MPa | 2.6/3.2MPa | 2.6/3.2MPa | 2.6/3.2MPa |
| Power Line | 3*2.5mm2 | 3*2.5mm2+2*1.5mm2 | 3*4mm2+2*2.5mm2 | 3*6mm2+2*2.5mm2 |
| cooling condition:water source side inlet and outlet of the water temperature of 15℃/28℃；Water-using side return and outlet water temperature of 12℃/7℃ | ||||
| Cooling capacity (kW) | 7.8 | 7.8 | 14.9 | 16.8 |
| Input Power when cooling(kW) | 1.75 | 1.75 | 3.12 | 3.5 |
| Rated Current(A) | 8.5 | 4 | 6 | 7 |
| COP(EER) | 4.46 | 4.46 | 4.78 | 4.80 |
| Water-using side circulating water flow(m3/H) | 1.7 | 1.7 | 3.2 | 3.6 |
| water source circulating water flow (m3/H) | 0.8 | 0.8 | 1.5 | 1.7 |
| Heating condition:water source side inlet and outlet of the water temperature of 15℃/10℃；Water-using side return and outlet water temperature of 40℃/45℃ | ||||
| Heating Capacity(kW) | 10.6 | 10.6 | 18.9 | 22.1 |
| Input Power when heating(kW) | 2.37 | 2.37 | 4.19 | 4.9 |
| Rated Current(A) | 11 | 5 | 8 | 9 |
| COP | 4.47 | 4.47 | 4.51 | 4.51 |
| Water-using side circulating water flow(m3/H) | 2.3 | 2.3 | 4.1 | 4.8 |
| water source circulating water flow(m3/H) | 1.8 | 1.8 | 3.2 | 3.7 |
| Pipe size (mm) Water-using side / water source | DN25/DN32 | DN25/DN32 | DN25/DN32 | DN25/DN32 |
| Waterproof Grade | IPX4 | IPX4 | IPX4 | IPX4 |
| Anti-electric shock Rate | I | I | I | I |
| Noise(dB(A)) | ≤55 | ≤55 | ≤58 | ≤58 |
| Net weight(kg) | 125 | 125 | 145 | 155 |
| Gross weight(kg) | 135 | 135 | 155 | 165 |
Description:
1. Strong SGCC Casing Dark Cyan Charming Design;
2. Smart control double systems;
3. Danfoss/Copeland/Emerson/Eaton etc. precise accessories are constructing outstanding quality
& high efficient performance.
4. Excellent for both hot water, heating & cooling, meeting all demands you need.

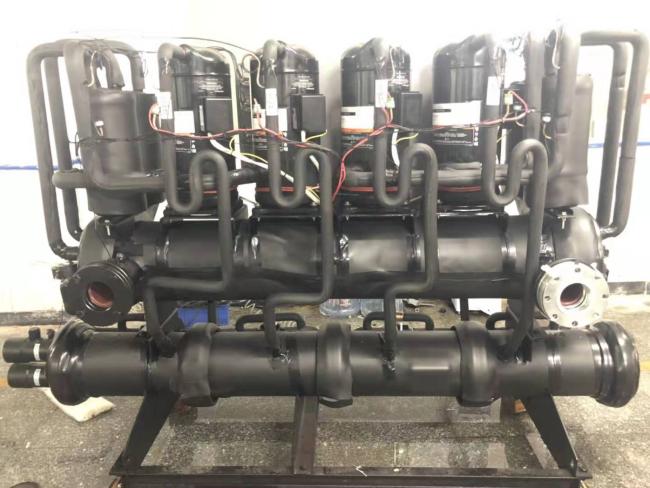

Product inner details:
Welcome to visit our website, if you are interested in our heat pumps,please send inquiry to us, we will give you our best support ASAP.
