8.3 kW with 80 ℃ high temp water outlet , side-discharge fan； air source heat pump water heater
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
TRT
Product Description
| High Temp Heat Pump | |||
| Model No. | TRT-3HP-HV | ||
| Power Supply | 380V/3N/50Hz | ||
| Rated Heating Capacity | 8.3 KW | ||
| Rated Input Power | 3.3 KW | ||
| Rated Current | 7.5 A | ||
| Refrigerant/ Charging | R134A/2200g | ||
| Max Discharge Working Pressure | 3.0Mpa | ||
| Max Suction Working Pressure | 0.8Mpa | ||
| Rated water outlet temp | 75℃ | ||
| Max Hot Water Outlet | 80℃ | ||
| Water Production | 119 L/H | ||
| Circulation water flow | 1.78m³/H | ||
| Unti-electric/ waterproof level | I /IPX4 | ||
| Water pipe size | DN25 | ||
| water side pressure drop | ≤55kpa | ||
| Operating Noise | ≤48dB(A) | ||
| working ambient temp range | -7℃-43℃ | ||
| Net Weight | 98 Kg | ||
| Net Size | 830*440*1160 mm | ||
| Production date | Refer to Barcode | ||

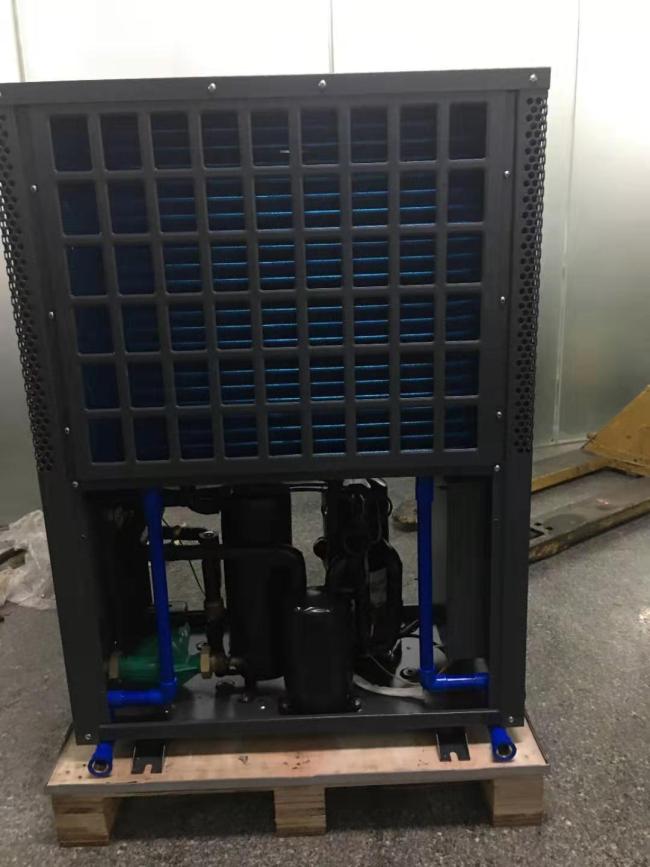

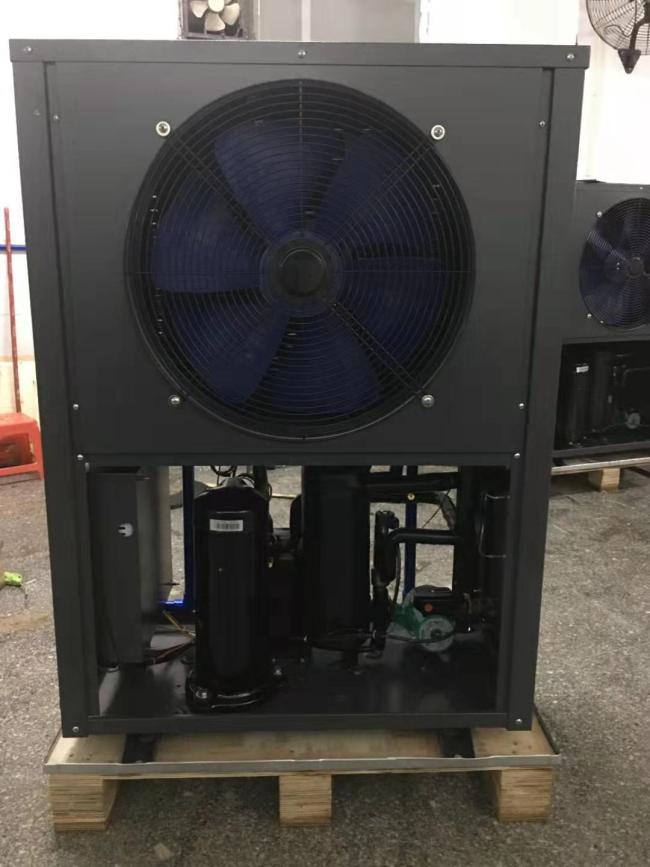

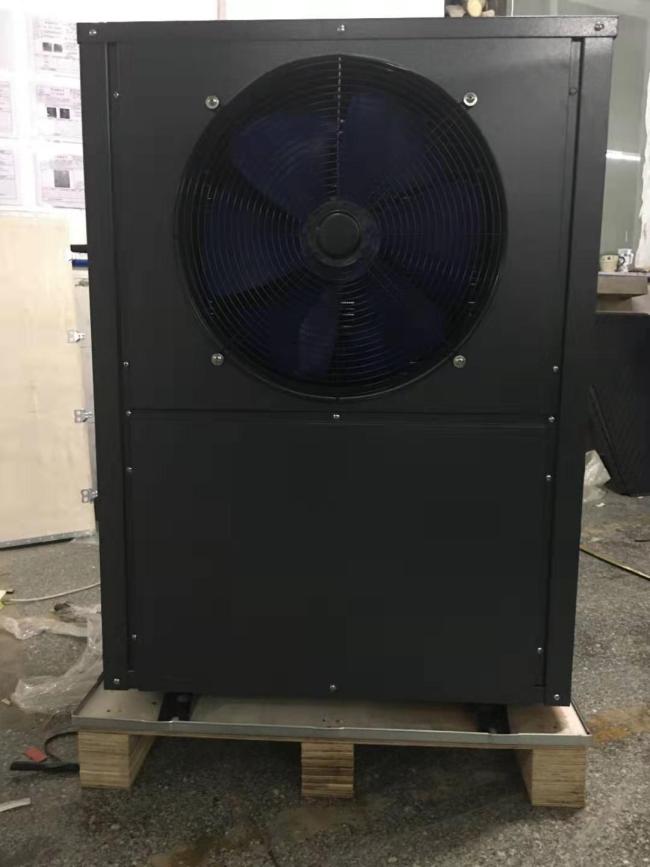

8.3kW high temp air source heat pump
