20kW with 80 ℃ high temp water outlet , side-discharge fan； air source heat pump water heater
Price:
Negotiable
MOQ:
1
Delivery Time:
Negotiable
Brand:
TRT
Product Description

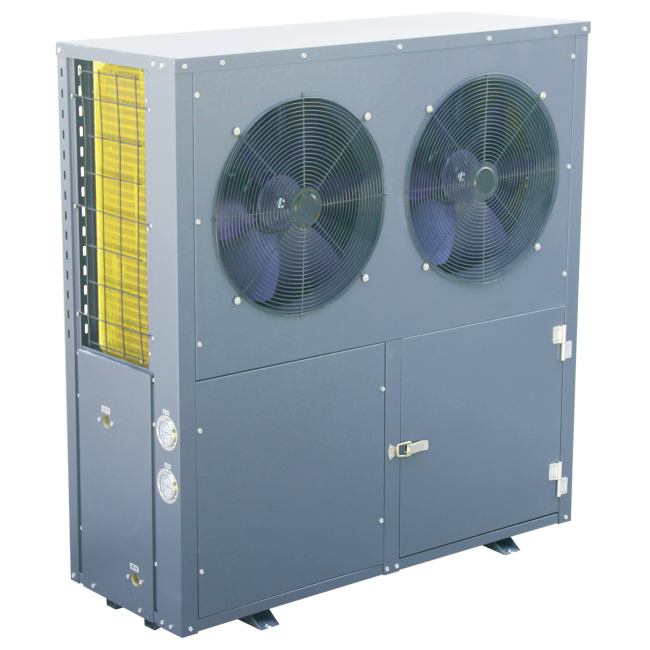

20kW high temp air source heat pump
| High Temp Heat Pump | |||
| Model No. | TRT-7HP-HV | ||
| Power Supply | 380V/3N/50Hz | ||
| Rated Heating Capacity | 20KW | ||
| Rated Input Power | 7.2KW | ||
| Rated Current | 13A | ||
| Max Input Power | 9.4KW | ||
| Max current | 17A | ||
| Refrigerant/ Charging | R134A/3500g | ||
| Max Discharge Working Pressure | 3.0Mpa | ||
| Max Suction Working Pressure | 0.8Mpa | ||
| Rated water outlet temp | 75℃ | ||
| Max Hot Water Outlet | 80℃ | ||
| Water Production | 290 L/H | ||
| Circulation water flow | 4.3m³/H | ||
| Unti-electric/ waterproof level | I/IPX4 | ||
| Water pipe size | DN25 | ||
| water side pressure drop | ≤65kpa | ||
| Operating Noise | ≤58dB(A) | ||
| working ambient temp range | -7℃-43℃ | ||
| Net Weight | 150Kg | ||
| Net Size | 1237*480*1410 MM | ||
