QDGY brand GSG-X-90B hydraulic brake hose crimping machine tools
QDGY brand hydraulic hose crimping machine
QDGY brand hydraulic hose crimping machine is produced by Qingdao Guosong Machinery Parts Co.,Ltd, which was established on 1998. We had exported our products to more than 50 countries. We certivicated in ISO90001 and TS16949 Quality management.
The details of hydraulic hose crimping machine:
|
No. |
X-90A |
|
Applicable |
Engineering machinery,industry devicem,auto part hose |
|
Hose diameter |
1/4"- 2" |
|
Oil Pump Pressure |
31.5Mpa |
|
Motor Power |
3KW |
|
Mold Crimping force |
300MT |
|
Voltage |
380V/220V |
|
Plug-type |
Three-wire |
|
Efficiency |
6Pcs/M |
|
Tolerance |
0.02 |
|
Crimping control |
Foot switch |
|
Molds diameter |
14-68 ( 12 sets) |
|
Weight |
350kg |
|
Dimension(LxWxH) |
700 X 500 X 1300 |
|
Advance |
With hose assembly pressure test function. |

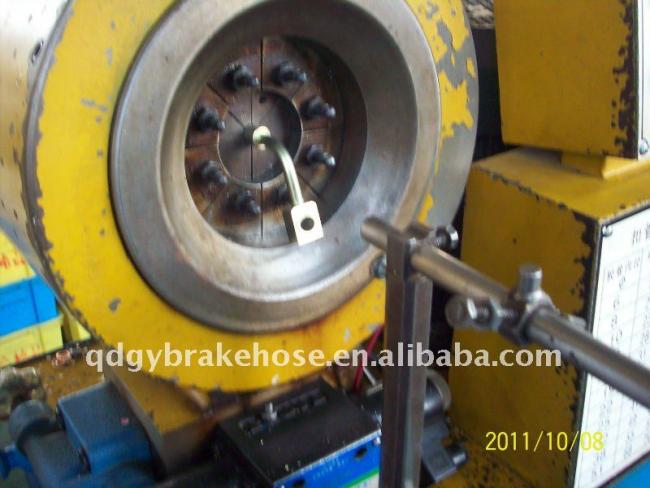

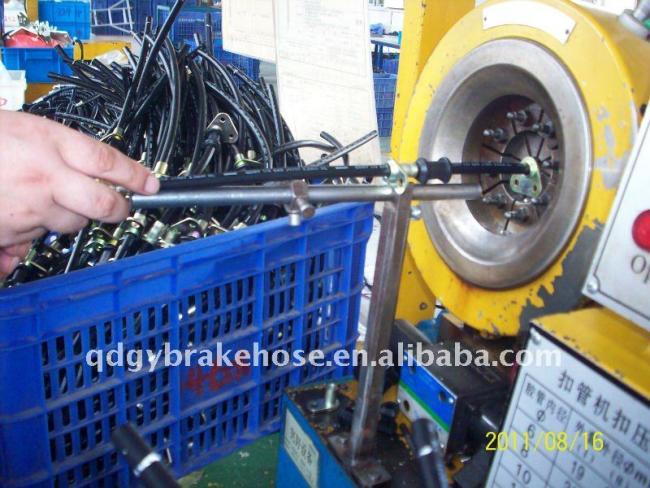

The machine is hydraulic hose crimping hose:

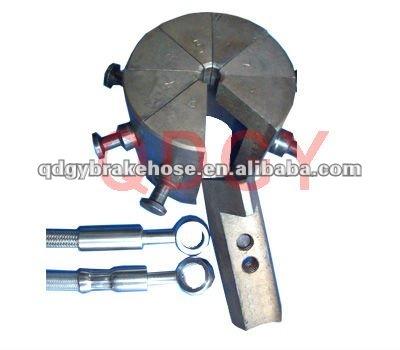

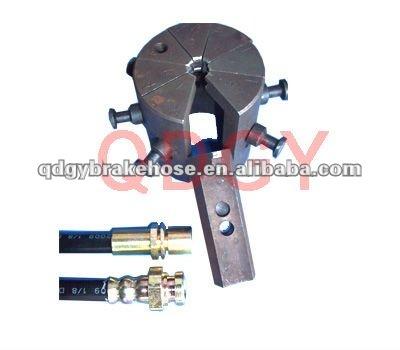

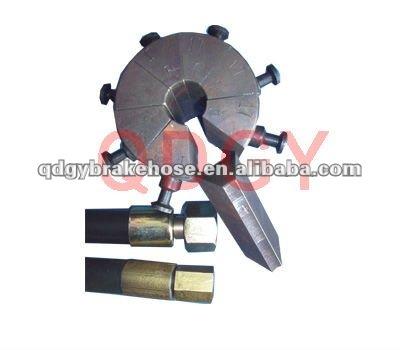

The mold of the machine

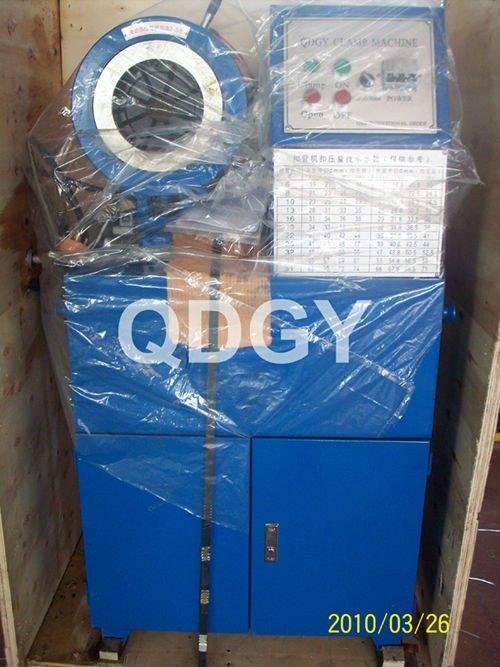

The packing of hydraulic hose crimping machine:
More details, welcome to contact with us, and welcome to visit our factory.
