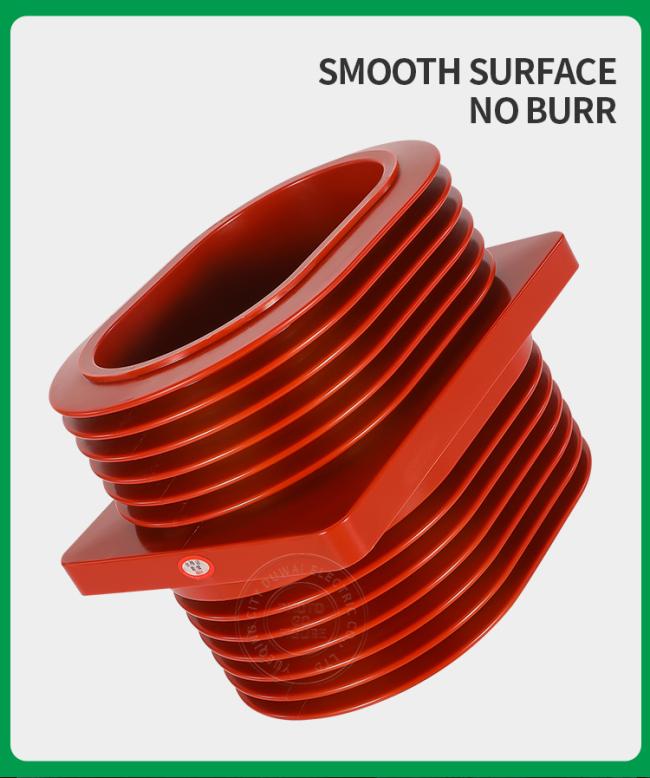

TG1-24Q 175X255X218 Epoxy Resin Wall Bushing High Voltage 24kv Support APG Technology

Price Negotiable

Price: USD5.85/PCS

MOQ: 100PCS

Delivery Time: Negotiable

Brand: DUWAI

Product Description

TG1-24Q 175X255X218 Epoxy Resin Bushing Wall Bushing High Voltage 24kv Support APG Technology

Features:

DUWAI is an ISO9001 certified manufacturer of standard and custom epoxy bushings.

APG machines are capable of molding epoxy resin products with maximum weight 11kg, diameter 300mm and height 550mm.

Available for indoor and outdoor applications for rated voltage up to 40.5KV.

Testing equipment includes DSC analyzer, X-ray tester, leakage tester and mechanical testing machines.

Bushings are used for power transmission and distribution equipment, test equipment and railway systems etc. Meets IEC and ANSI standards.

Epoxy material is UL746A certified.

Applicable Work Environment:

1. Indoor installation.

2. Altitude: ≤1000m.

3. Ambient temperature: -10°C~+40°C.

4. Creepage distance: ≥20mm/KV

5. The relative humidity shall not be more than 85%at+20°C ambient temperature.

6. NO gas, vapor or dust that may severely affect the insulation of contact box, no explosive or corrosive substance

Model Name:	TG1-24Q/175x255x218
Brand:	DUWAI
Type:	Wall bushing
Application:	High Voltage / Switchgear
Color:	brown, red
Product Certification:	CE and ISO 9001:2000
Rated voltage:	24KV
MOQ:	1pcs
Packing:	1. Each one is wrapped with plastic film 2. Packed in cartons 3.Cartons are sealed in a wooden box 4.The cases are bound with iron belts externally
Loading port:	Shanghai Port / Ningbo Port
Payment terms:	T/T, Western Union
Delivery time:	within 15 days, depends on order quantity
Additional:	1. OEM are welcome 2. High quality & timely delivery 3. Reasonable price 4. In a variety of designs and Specification
