dUWAI Electric new energy Battery 16x25 M6 DMC Hex Round Busbar Insulator for kYN28 cabinet
DUWAI Electric New Energy Battery 16x25 M6 DMC Hex Round Busbar Insulator For KYN28 Cabinet
● Product:
- SB-16×25mm
- Diameter: 16mm
- Height: 25mm
- Material: resin
- Nut size: M6
- Strength: axial tensile 500N, tightening torque 12N/ m
-Withstand voltage:10KV
● Package:
- SB-16×25mm ----- 50pcs
● Description:
- SB-16×25mm High-strength insulator,SB insulation column.
- The product is generally cylindrical, with one screw hole at each end to fix the line that needs to be connected.
- Widely used in high low power distribution cabinet.For power distribution, transmission, fixing copperor alumnium busbar, etc, play the role of insulation and connection.
- Good electrical resistance, heat resistance, fire resistance, low shrinkage and water resistance.Excellent texture and good workmanship are your choice.
● Note:
-The product does not have screws, please purchase separately.

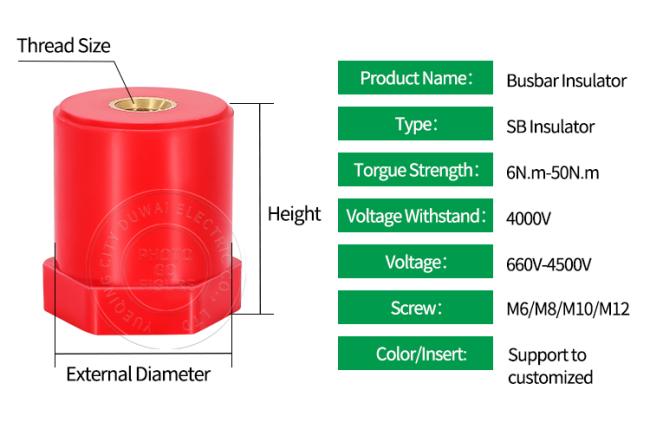

| Product Name | hex round insulator |
| Brand | DOWE |
| Model | SB1625M6 |
| Material | DMC/BMC |
| Type | Hex round type |
| Dimension | 16x25 m6 |
| Color | Customized |
| Sample | Free |
| Torgue Strength | ≥8N/M |
| Rated Voltage | 660V |
| Application | battery,power car |
| Certification | CE,ROHS,UL for material |
| Operating Temperature | 30℃~120℃ |
| Place of Origin | China |
| Model | Diameter | Height | Screw | ||||||||||||||||
| SB14 | 14 | 14 | 16 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 60 | M5 | M6 | |||||
| SB16 | 16 | 16 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | M5 | M6 | |||||
| SB20 | 20 | 16 | 18 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 78.8 | 80 | 90 | M5 | M6 |
| SB30 | 30 | 30 | 35 | 40 | 50 | 60 | 65 | M6 | M8 | ||||||||||
| SB35 | 35 | 45 | M10 | ||||||||||||||||
| SB40 | 40 | 30 | 35 | 40 | 50 | 60 | 70 | M8 | M10 | ||||||||||
| SB60 | 60 | 40 | 50 | 60 | 70 | 80 | M12 | M16 | |||||||||||
