ASTM AZ91 Magnesium Alloy Sheet AZ31 Same With Elektron Quality
Magnesium Alloy Plate AZ91 Magnesium Alloy Sheet AZ31
Hot stamping magnesium etching sheet
Content: magnesium alloy
Process : Extruded
Application: CNC engraving ,hot stamping, embossing
| Length*Width(mm) | Thickness(mm) | ||||||||
| 1000*500 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 6.35 | 7.0 | 10.0 |
| 914*610 | 1.5 | 2.0 | 3.0 | 4.0 | 5.0 | 6.0 | 6.35 | 7.0 | 10.0 |
Other size accroding customer's request.(150mm minimum length/width,Thickness less than 3mm is 100mm minimum)
| Tensile test | Hardness | ||
| σb Mpa | σ 0.2Mpa | σ% | Hv(0.5kg)75+5 |
Appalication:
Sheet and plate in AZ31B find application in medium strength service at temperatures below 150°C. Diverse uses including aerospace, aircraft, concrete tools, 3C (cell phone / camera / computer), speaker cones and textile machinery can all benefit from light weight AZ31B.
AZ31B is non-magnetic and has high electrical and thermal conductivity filling the requirements for RFI and EMI shielding in the electronics and computer industries.
Superplastic forming of AZ31B sheet at elevated temperatures allows production of a wide variety of intricate parts for automotive uses. Monocoque construction utilizing formed sheet can be adapted to many commercial applications.
Size Range:
| Sheet | hickness from 0.6-180mm |
| width | Max. 460mm |
| length | Max. 600mm |
Appalication: Printing, Foil stanping, Embossing, Flexography, Thermal dies, Rubber stamps.
Advantage : faster, cleaner, user-friendly , quality control ( etching test of each lot goods before out of plant
| Designation | Main Chemical Composition | ||||||
| Al | Mn | Zn | Zr | Y | RE | Mg | |
| AZ91D | 8.5-9.5 | 0.2-1.0 | 0.6-1.4 | - | - | - | Balance |
Mechanical properties
| Designation | Operating temp. (℃) | Tensile strength (MPa) | Yield strength (MPa) | Extensibility (%) | Modulus of elasticity (N/mm2) |
| AZ31B | ≤150 | 290 | 220 | 15 | 45 |
AZ91/AZ31/AM60/ZK60/WE43/WE54 magnesium alloy slab
It is a wrought magnesium base alloy with good room-temperature strength and ductility combined with corrosion resistance and weldability. Increased strength is obtained by strain hardening with a subsequent partial anneal (H24 and H26 tempers).
Application:
Sheet and plate find application in medium strength service at temperatures below 150°C. Diverse uses including aerospace, aircraft, concrete tools, 3C (cell phone / camera / computer), speaker cones and textile machinery can all benefit from light weight AZ31B.
It is non-magnetic and has high electrical and thermal conductivity filling the requirements for RFI and EMI shielding in the electronics and computer industries.
Superplastic forming of AZ31B sheet at elevated temperatures allows production of a wide variety of intricate parts for automotive uses. Monocoque construction utilizing formed sheet can be adapted to many commercial applications.
Our Advantage

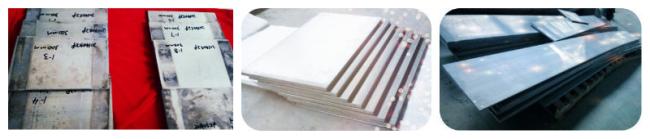

• Process:Semi-Casting & Hot Rolling→Hot Rolling
• Size:Min thickness 0.5mm,Max thickness 300mm,Width 3000mm, Length 6000mm.
• Surface Treatment:
Water Polishing & Machining → Perfect Clean & Bright & Flatness.
• Inspection of inner quality: By imported ultrasonic flaw detection inspection equipment UI-25.
