1.7v 17 lbs 32 lbs 7.7 kgs 14.5 kgs High EfficiencMagnesium Anodes With Gypsum Bentonite Sodium Sulphate Backfill Powder
Price:
negotiable
MOQ:
10 Kilograms
Delivery Time:
1 FCL:14 Days
Brand:
OEM
Product Description
Prepackaged 1.7v Magnesium Anode With Gypsum, Bentonite, Sodium Sulphate Backfill
Magnesium Backfill anodes typically have 10′ of No. 12 insulated wire and are packaged in the backfill mixture of: 75% Hydrated Gypsum, 20% Bentonite, 5% Sodium Sulfate
| ANODE SIZE | BARE LBS | PACK LBS | ANODE WIDTH | ANODE HEIGHT | ANODE LENGTH | PACKAGE DIA | PACKAGE LENGTH |
| HB-3-H-1 | 3 | 8 | 3 | 3 | 5 | 5.25 | 8 |
| HB-5-H-1 | 5 | 13 | 3 | 3 | 8 | 5.25 | 11.25 |
| HB-9-H-1 | 9 | 27 | 3 | 3 | 14 | 5.25 | 20 |
| HB-12-H-1 | 12 | 32 | 4 | 4 | 12 | 7.5 | 18 |
| HB-17-H-1 | 17 | 45 | 4 | 4 | 17 | 7.5 | 24 |
| HB-32-H-1 | 32 | 68 | 5 | 5 | 20.5 | 8.6 | 28 |
| HB-5-HP | 5 | 17 | 3.5 | 3.5 | 8.5 | 6 | 12 |
| HB-9-HP | 9 | 27 | 3.5 | 3.5 | 14 | 6 | 17 |
| HB-14-HP | 14 | 31 | 2.75 | 2.75 | 41 | 6 | 46 |
| HB-17-HP | 17 | 45 | 3.5 | 3.5 | 25.75 | 7.5 | 34 |
| HB-32-HP | 32 | 70 | 5.5 | 5.5 | 20.5 | 8 | 28 |

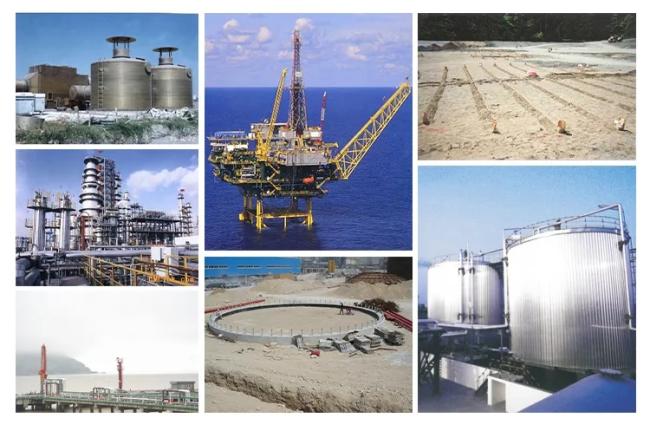

Magnesium anodes are commonly used in cathodic protection, as Mg metal has the more negative potential than other galvanic materials. We take the most professional and reasonable technical control through melting of Mg metal, choosing of Mg ingot and impurity, preparing of Mg alloy melt, refining of Mg alloy, pouring and casting of anode, making mould, connecting of cable and final test.
Cable Connection
Standard lead Cable:
10 feet of #12 AWG Solid THHN/THWN.
Other cable types and colors are available.
Standard lead Cable:
10 feet of #12 AWG Solid THHN/THWN.
Other cable types and colors are available.
Welding process:
The cable is connected by direct brazing.
Sophisticated welding processing done by semi-automatic machine to ensure the high pulling strength and low resistance.
45% silver-based brazing or weld connection methods are available upon special request.
The cable is connected by direct brazing.
Sophisticated welding processing done by semi-automatic machine to ensure the high pulling strength and low resistance.
45% silver-based brazing or weld connection methods are available upon special request.
