DIN MARINE AIR PIPE VENT 6KG and 10KG--CB/T3594ES
Price:
100
MOQ:
1
Delivery Time:
1-15 days
Brand:
CXD &OEM
Product Description
The out look of the DIN AIR VENT HEAD is almost the same with the JIS TYPE AIR VENT HEAD .
But the flange is produce according to DIN STANDARD.

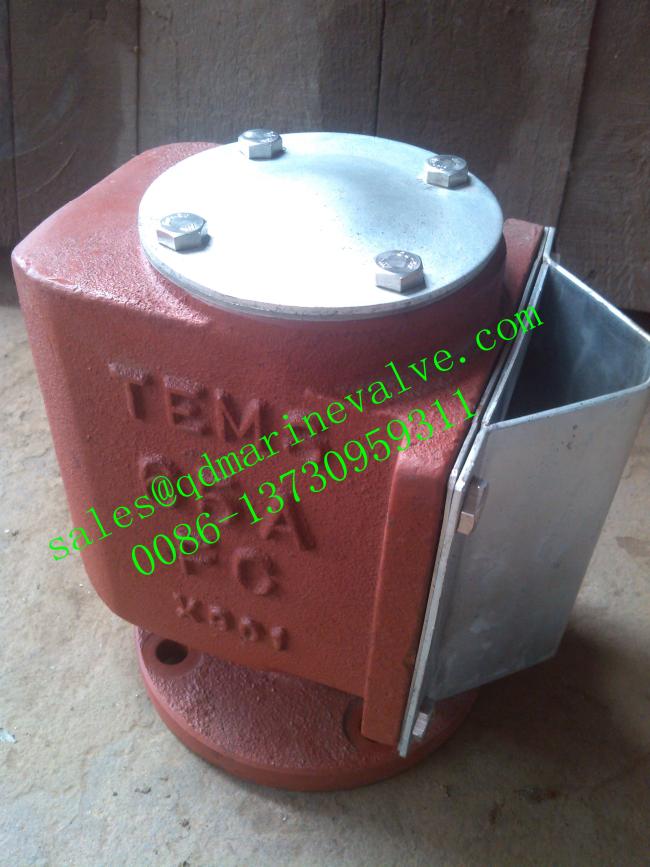

Below are some picture of DIN ARE VENT HEAD for your reference.
Description:Air Vent Head
Model:
Size: DN50-450mm
| DIN AIR VENT HEAD 6kg/cm2 | |||||
| CB/T3594ES | |||||
| SIZE diam | flange diam | pitch | hole | ||
| 50A | 140 | 110 | 4×Ф14 | ||
| 65A | 160 | 130 | 4×Ф14 | ||
| 80A | 190 | 150 | 4×Ф18 | ||
| 100A | 210 | 170 | 4×Ф18 | ||
| 125A | 240 | 200 | 8×Ф18 | ||
| 150A | 265 | 225 | 8×Ф18 | ||
| 200A | 320 | 280 | 8×Ф18 | ||
| 250A | 375 | 335 | 12×Ф18 | ||
| 300A | 440 | 395 | 12×Ф22 | ||
| 350A | 490 | 445 | 12×Ф22 | ||
| 400A | 540 | 495 | 16×Ф22 | ||
| 450A | 595 | 550 | 16×Ф22 | ||
Pressure: 6kg/cm2
10kg/cm2
Size: DN50-450mm
contact:Eric
Email:sales@qdmarinevalve.com
