JIS F7364 CAST IRON GATE VALVE 10K200A Hot sales
Marine Cast Iron Gate Valve JIS F7364 10K with brass indicate
Design Standard: JIS F7364-1996
Test Standard: JIS 7400-1996
Hydraulic Test Pressure: Body- 2.1Mpa, Seat-1.54Mpa
Flange size as per JIS B2220 - 10K
Main Material:
Body: FC200 (Cast Iron)
Bonnet: FC200 (Cast Iron)
Disc: Bronze (BC6) or SCS2 (2Cr13)
Seat: Bronze (BC6) or SCS2 (2Cr13)
Stem: Brass (C3771BD) or SUS403
Gasket: non-asbestos
Packing Gland: Bronze (BC6) or SCS2(2Cr13)
Handwheel: FC200 (Cast Iron)
Marine Cast Iron Gate Valve JIS F7364 10K with brass indicate
Size:DN50-DN400
|
Size |
L |
Flange diam. (D) |
Pitch (C) |
Hole (nxh) |
t |
H |
Weight |
|
50 |
200 |
155 |
120 |
4-19 |
20 |
300 |
19.4 |
|
65 |
220 |
175 |
140 |
4-19 |
22 |
350 |
27.6 |
|
80 |
230 |
185 |
150 |
8-19 |
22 |
400 |
33 |
|
100 |
250 |
210 |
175 |
8-19 |
24 |
450 |
45.8 |
|
125 |
270 |
250 |
210 |
8-23 |
24 |
520 |
65.9 |
|
150 |
290 |
280 |
240 |
8-23 |
26 |
580 |
86 |
|
200 |
320 |
330 |
290 |
12-23 |
26 |
700 |
136 |
|
250 |
380 |
400 |
355 |
12-25 |
30 |
840 |
230 |
|
300 |
440 |
445 |
400 |
16-25 |
32 |
960 |
331 |
|
350 |
500 |
490 |
445 |
16-25 |
34 |
1050 |
433 |
|
400 |
590 |
560 |
510 |
16-27 |
36 |
1150 |
597 |

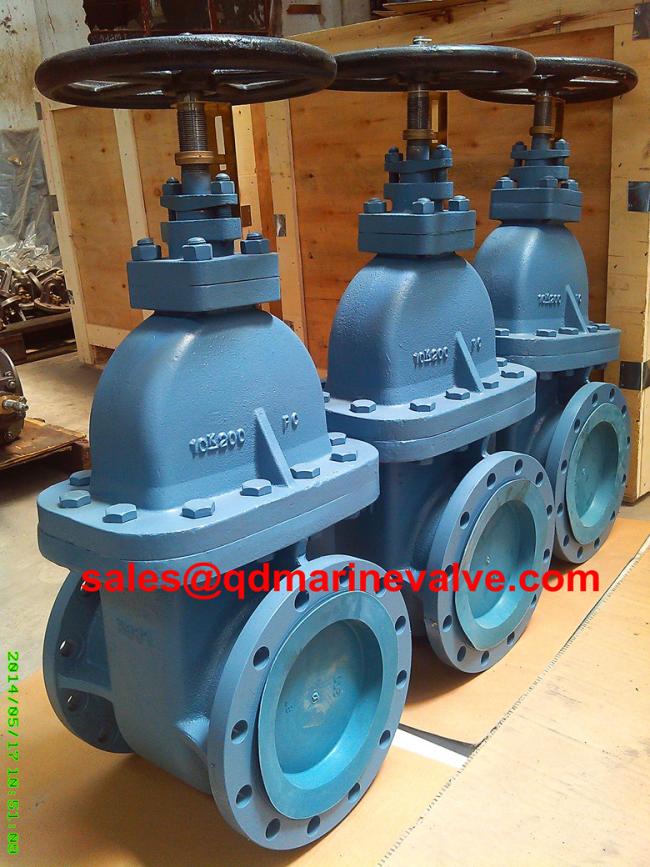

Picture for JIS F7364 Cast iron gate valve 10K200A
 |
 |
 |
