Marine Cast steel Valves-JIS F7311/ JIS F7312/ JIS F7319/ JIS F7320/F7471/F7472
Price:
Negotiable
MOQ:
1
Delivery Time:
3-30DAYS
Brand:
CXD &OEM
Product Description

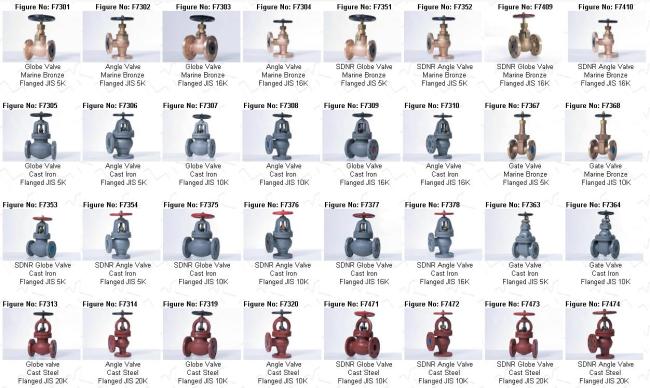

JIS-marine-cast steel screw down check globe valve
F7471 10k50-450
F7311C 5k50-450
F7473 20k32-250
JIS-marine-cast steel screw down check angle valve
F7472 10k50-450
F7312C 5k50-450
F7474 20k32-250

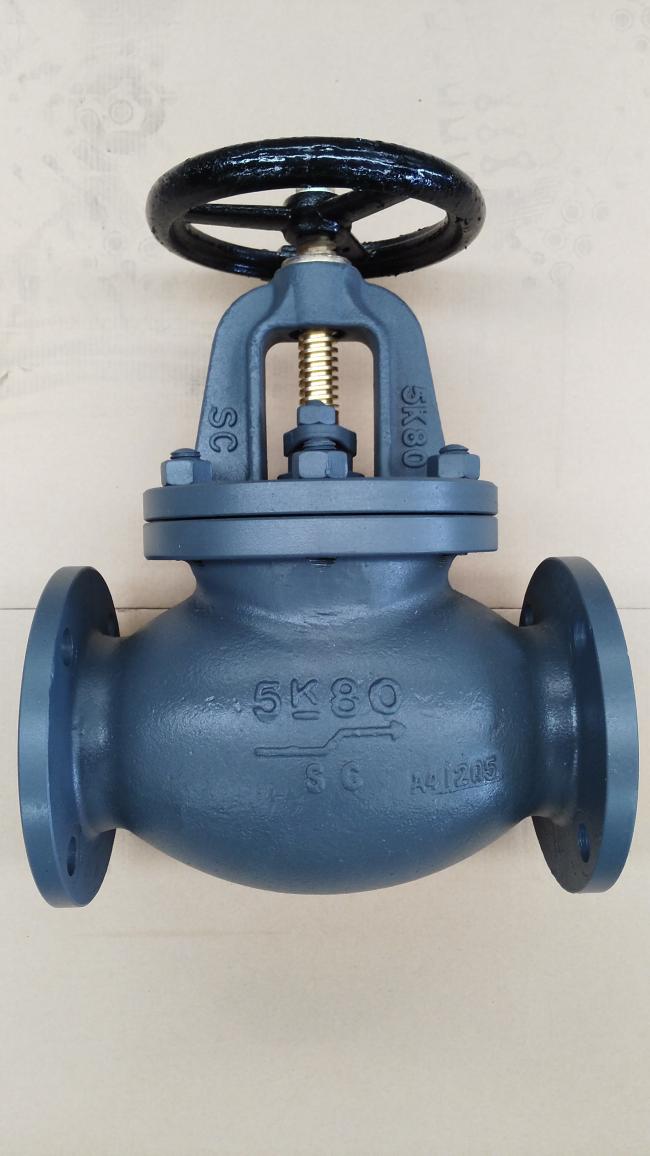

JIS-marine-cast steel globe valve
F7311 5k50-450
F7319 10k50-450
F7313 20k32-250
JIS-marine-cast steel angle valve
F7312 5k50-450
F7320 10k50-450
F7314 20k32-250
| Specifications | |||||
| Marine Angle Valve | |||||
| 1)good quality with test certificate | |||||
| 2)with one year's warranty | |||||
| 3)CCS,DNV, BV,ABS,RINA certificate | |||||
| Marine Cast Steel Angle Valve JIS 5K ,10K,20K.30K,40K | |||||
| Test Standard: JIS 7400-1996 | |||||
| Hydraulic Test Pressure: Body- 5.00Mpa, Seat-3.67Mpa | |||||
| Flange size as per JIS B2220 - JIS 5K ,10K,20K.30K,40K | |||||
| Main Material: | |||||
| Body: Cast Steel (SC480) | |||||
| Bonnet: Cast Steel (SC480) | |||||
| Packing Gland: Bronze (BC6) or Stainless Steel (2Cr13) | |||||
| Stem: C3771BD (Brass) or SUS403 | |||||
| Seat: Bronze (BC6) or Stainless Steel (2Cr13, SCS2) | |||||
| Disc: Bronze (BC6) or Stainless Steel (2Cr13, SCS2) | |||||
| Gasket: non-asbestos | |||||
