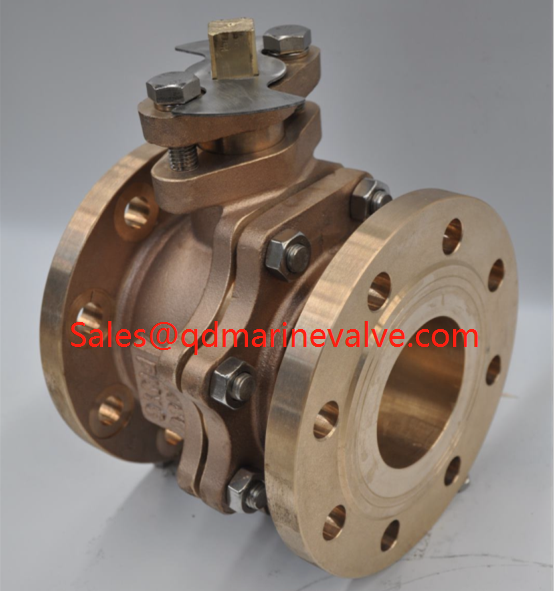

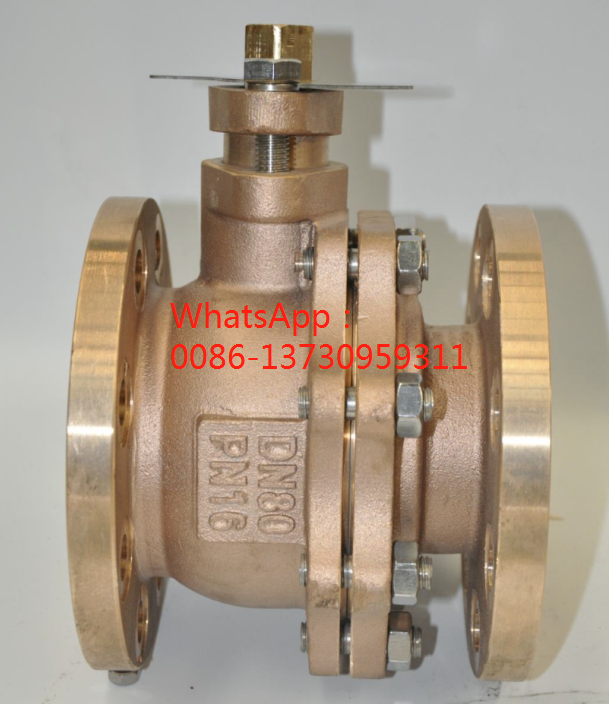

DIN standard Bronze Material Ball valve, flange type.BC6 material
DIN standard Bronze Material Ball valve, flange type.BC6 material.
Inner thread ballvalves valves JLC2701-98
Using instruction:
The globe valves suitable to be used on various kindsof pipes as the open/closedvices,and they also can beused in different erosive media and vapour pipes the valves own good corrosion resistance against every ki-nd of organic acids,aswell as agsinst nitric acid, hydroc-htoric acid and hot acids specially.
The Flange of the Bronze ball valve can be JIS type and DIN standard,
Contact:Eric
Email:sales@qdmarinevalve.com
Tell/whatsapp:0086-13730959311
Web:http://www.qdmarinevalve.com
Two-Phase Inner thread ball valves
Major parts Material
|
NO
|
PART NAME
|
SPECIFICATION
|
|
1
|
BODY
|
ASTN A351 GR.CF8M
|
|
2
|
END CAP
|
ASTN A351 GR.CF8M
|
|
3
|
BALL
|
ASTN A351 GR.CF8M
|
|
4
|
BALLSEATS
|
PTFE
|
|
5
|
STEM
|
S.S.316
|
|
6
|
END SEAL
|
PTFE
|
|
7
|
GLAND
|
S.S.304
|
|
8
|
HANDEL
|
S.S.304
|
|
9
|
HANDEL WASHER
|
S.S.304
|
|
10
|
HANDEL SLEEVE
|
S.S.304
|
|
11
|
HANDL SLEEVE
|
VINYL GRIP
|
|
*12
|
LOCKLNG PLATE
|
S.S.304
|
