Solid Bar Bow Top Fence Railings, Anti-Trap Hoop/Round Top Fencing, Curved Top Hairpin Fences for Children Playground
Bow Top Railing Fencing System
Bow Top Fencing Railing Systems For Schools, Play Areas, Commercial Business & Retail Outlets.
Bow top railing systems are available in a variety of styles: single, interlaced, bow in bow, bar in bow and bow and bar.
Dimensions
Heights
Produced from solid bar in all heights up to 3 metres.
Horizontals
Available in Flat or Channel section.
Standard Sizes
| Fence height (m) | Embedded length of post | Diameter of vertical round (mm) | Spacing of verticals (centres) | Size of horizontals (mm) | Size of RSJ post | Size of RHS post |
| 1 | 450 | 12 | 112 | 30 x 10 | 100 x 55 | 50 x 50 |
| 1.2 | 500 | 12 | 112 | 30 x 10 | 100 x 55 | 50 x 50 |
| 1.2 | 500 | 16 | 112 | 40 x 10 | 100 x 55 | 50 x 50 |
| 1.5 | 550 | 16 | 112 | 40 x 10 | 100 x 55 | 50 x 50 |
| 1.8 | 600 | 20 | 120 | 50 x 10 | 100 x 55 | 70 x 70 |
| 2.4 | 600 | 22 | 120 | 50 x 10 | 100 x 55 | 80 x 80 |
Installation
Posts
Intermediates, Corner and Ends are available in a wide range of sizes and materials including: RHS and IPE, with the provision to be stepped or cranked to suit site conditions, secured in concrete (supplied complete with two support legs per standard panel for concrete-in fixing) or base plated for surface mounting. All posts come with welded steel caps and a range of post head details are available for all railings as an optional extra.
Panels
Panels are available as standard to 2.72m wide with centres of 2.75 metres straight and level, and welded in accordance with BS: EN: 1722 Pt9. Panels can also be made to suit your specific requirements – custom lengths, straight, curved or raked.

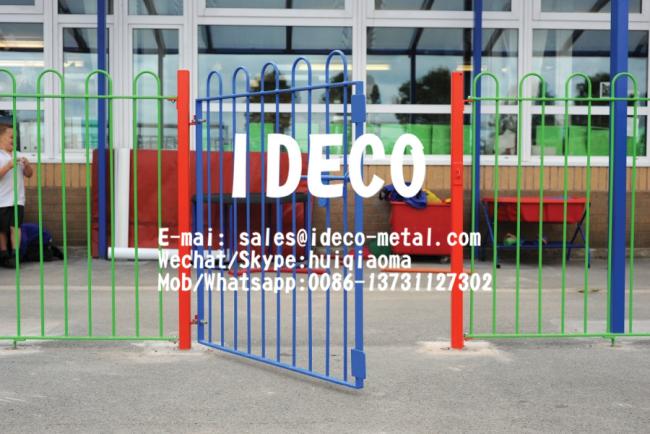

Gates
Standard gates are available or tailored-made to suit your requirements. All gates are supplied with adjustable hinges, pad-lockable drop-bolts, multi-holed to suit site conditions and robust pad-lockable slide latches.
See our gate range for further details.
