2018 New Creation 20R Moving Head 440W Strong Light of Beam Spot Wash Zoom for Big Shows

2018 New Creation 20R Moving Head 440W Strong Light of Beam Spot Wash Zoom for Big Shows

Introduce:

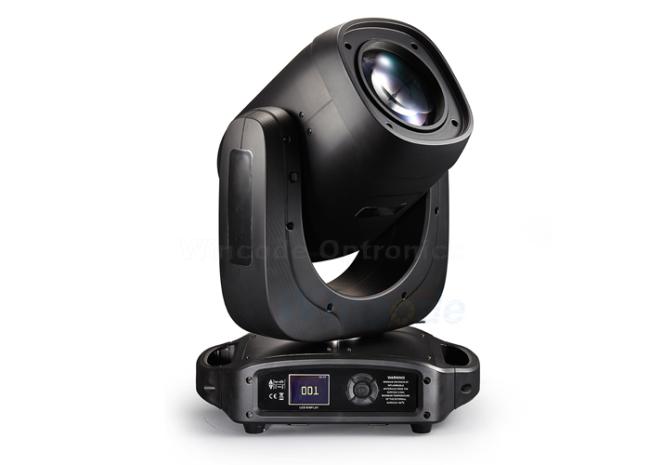

WOP-M440 an extremely advanced form of hybrid light: an amazing 440 watt-lamp spotlight, which produces an incredible large light beam, featuring a zoom that ranges from 4° to 50° (1:12 ratio).

Comes as an extraordinary beam light, allowing you to switch to a minimum fixed beam angle of just 2.5°. A large, very dense, 160 mm-diameter light beam leaves the Armor’s front lens and remains parallel for its entire length even at great distances.

Light beam is sharp, with careful defined edges, innovating as a very unique and modern design. The zoom is optimized for focusing, which is separate from that of the fixed and rotating gobos. Its movements are smooth, fast and very quiet. Armor also features a completely redesigned indexed visual effect disc, which may be superimposed on all the gobos, both in and out of focus.

Reasons to buy:

WOP-M440 is a very versatile tool, which is useful in any application: beautiful, modern design and very competitive price performance ratio. The best investment to be part of your portfolio !

Optics

• Lamp: 440W discharge lamp, MSD Platinum 20R (color Temperature: 7,800K)
• Light output: 23,000 lm
• LEDs expected lifetime: 1500hrs

Optical and effects

• Optics: 160mm diameter front lens
• Zoom range: 4-31 degrees for fixed gobos/6.7-50 degrees for rotating gobos 2.5degrees for Beam Mode with aperture and pipe effect

Electrical

• Input voltage range: 110-230V AC 50/60Hz
• Power consumption: 700W at 230V 50Hz

Programming and Control

• DMX channels: 30/34 DMX 512 control channels

Physical

• Dimensions (L x H x W): 460 x 323 x 574 mm
• Weight:30 Kg (66 lbs.)
• Moving body/ angle: PAN = 540degrees Tilt = 244 degrees/ Automatic repositioning of PAN and Tilt

Electromechanical Effects

• 2 gobo wheels: wheel with 6HQ dichroic indexable and interchangeable rotating gobos/ variable rotating wheel with 18+1 fixed metal gobos; Advanced Animation disc
• 2 indexable and interchangeable rotating prisms (8-facet and linear prism)
• High precision 0-100% dimmer
• Mechanical shutter and strobe effect

Electronics

• Long life self-charging buffer battery
• ON/OFF lamp control by DMX
• Cooling system monitoring
• Firmware upgraded by DMX cable with no power
