Red Painting pedestrian light pole 220V / 50Hz Lamp Power , lamp post pole 7m height

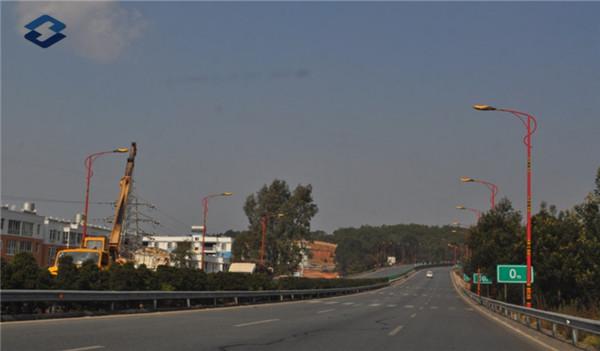

Conical Shape Single Arm Galvanized Red Painting Street Light Steel Pole
Description:
| Ordinary Poles Series | ||
| Height | Diameter | Flange |
| 4 | Ø65-Ø140 | 240*240*10*M14 |
| 5 | Ø65-Ø140 | 240*240*10*M16 |
| 6 | Ø65-Ø140 | 240*240*12*M18 |
| 7 | Ø70-Ø158 | 280*280*14*M18 |
| 8 | Ø75-Ø175 | 300*300*14*M18 |
| 9 | Ø80-Ø182 | 350*350*18*M20 |
| 10 | Ø80-Ø182 | 350*350*18*M20 |
| 11 | Ø80-Ø190 | 400*400*18*M20 |
| 12 | Ø80-Ø205 | 400*400*20*M24 |
| 12m floodlight poles | Ø80-Ø205 | 400*400*20*M24 |
| 13m floodlight poles | Ø80-Ø205 | 420*420*20*M24 |
Material
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345, Q420, Q460 used in China.
| China-GB | America-ASTM | Equivalent |
| Q235 | Grade D | SS400,S235JO |
| Q345 | Grade50[345] | S355JR |
| Q420 | Grade60[415] | S420NL |
| Q460 | Grade65[450] | S460NL |
Usually we use Q235 for lighting poles.
Specifications
| Height | 5 m to 12m |
| Application | Road ,Street, Highway, etc |
| Shape | Conical |
| Lamp Power | 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
| Arm | Single |
| Lighting Fixture | IP 65 |
| Working Atmosphere of Lighting Fixture | -35℃~+45℃ |
| Surface Treatment | Hot dip galvanized with ASTM A 123, color as request. |
| Safety | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Min Yield Strength | 355 mpa |
| Min Ultimate Tensile Strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Thickness | 3mm |
Adavantage:
1) Higher quality lower cost to win the competitive price
2) 200 pieces per day to ensure fast delivery
3) Skilled manufacturer, quality control and technical team
4) Warranty of quality: more than 25 years
Manufacturing
Our factory owns advances production lines and machines including bending calibration machine, hydraulic plate shearing machine, shearing machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with best quality.
After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
- The price includes pole shaft, base plate, crossarm and anchor bolts.
- Please provide drawings if you have so that we can calculate the accurate price for you.
3. MOQ: One 40FT Container.
4. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
5. Delivery Time: 2 weeks per container after PO/drawing/prepayment confirmed.
