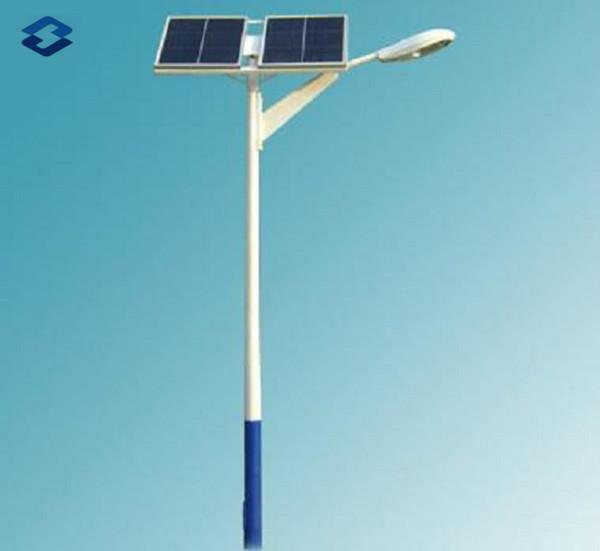

8m two Panels solar light pole with 160 Km / Hour Wind Speed Against earthquake of 8 grade
8m Solar Panel Galvanized and Powder Coated Street Light Sreel Pole
Material
| Steel | Yield Strength(MPa) | standard | Standard Title | Metallic element | Content |
| Main ingredient Q345 | 345 for Thickness<=16 |
GB/T 1591-2008 (ASTM A572/A572M-15 ,EN10025 S355N) |
High strength low alloy structural steels | C | ≤0.20 |
| Mn | ≤1.70 | ||||
| Si | ≤0.50 | ||||
| Accessories Q235 | 235 |
GB/T 700-2006 (ASTM A283 Gr.B ,EN10025 S235JR) |
Carbon structural steels | ||
| P | ≤0.035 | ||||
| S | ≤0.035 |
Description:
Top diameter: 62mm
Butt diameter: 150mm
Base plate: 280*280*12mm
Arm: 60mm
Anchor bolts: M22*4
Specifications
| Height | 8m |
| Application | Road ,Street, Highway, etc |
| Shape | Octagonal |
| Lamp Power | 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
| Arm | Single |
| Lighting Fixture | IP 65 |
| Working Atmosphere of Lighting Fixture | -35℃~+45℃ |
| Surface Treatment | Hot dip galvanized with ASTM A 123, white and Blue powder coated. |
| Safety | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Min Yield Strength | 355 mpa |
| Min Ultimate Tensile Strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Thickness | 3mm |
Manufacturing
Our factory owns advances production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with best quality.
| Welding | Standard | Standard Title |
|
Pole shafts&multi-sided tubular Cross arms&all accessories |
AWS D1.1/D1.1M:2010 | Structural Welding Code-Steel |
| Welding wire | AWS D1.1/D1.1M:2010 | Structural Welding Code-Steel |
| Hot dip galvanizing | Standard | Steel thickness/mm | Mean coating thickness/μm | Metallic element | Content |
| Pole shafts,cross arms&bolted on accessories | ASTM A123/A123M-15 AS/NZS 4680 | >6 | 85 |
Mn
|
0.25%-0.40%
|
| <3-6 | 70 | ||||
| 1.5-3 | 55 |
Cu
|
<0.15%
|
||
| <1.5 | 55 | ||||
| Bolts,nuts&washers |
GB/T 5267.3-2008 (ISO 10684-2004) |
_____ | ≥ 54 | P |
<0.025%
|
| Foundation bolts | ASTM A153/A153M-09 | _____ | ≥ 54 |
S
|
<0.03% |
Inspection
To ensure the quality, we have Microcomputer Automatic Carbon Sulfur Silicon Analyzer to check the raw material after purchasing the steel sheet.
Then we have Physical Performance Test, Mechanical Test, Galvanization Thickness Test, Load Test and Lad Test during and after the manufacturing process. All the effort is to meet our clients' requirements.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. MOQ: 1 set
4. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
5. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.
