Power Distribution Equipment lattice steel pole , Conical Polygonal Galvanized electric utility pole
Power Distribution Equipment Conical Polygonal Galvanized Electrical Steel Power Pole
Specification
| Steel | Yield Strength(MPa) | standard | Standard Title | Metallic element | Content |
| main ingredient Q345 | 345 for Thickness<=16 |
GB/T 1591-2008 (ASTM A572/A572M-15 ,EN10025 S355N) |
High strength low alloy structural steels | C | ≤0.20 |
| Mn | ≤1.70 | ||||
| Si | ≤0.50 | ||||
| Accessories Q235 | 235 |
GB/T 700-2006 (ASTM A283 Gr.B ,EN10025 S235JR) |
Carbon structural steels | ||
| P | ≤0.035 | ||||
| S | ≤0.035 |
Description:
| Welding | Standard | Standard Title |
|
Pole shafts&multi-sided tubular Cross arms&all accessories |
AWS D1.1/D1.1M:2010 | Structural Welding Code-Steel |
| Welding wire | AWS D1.1/D1.1M:2010 | Structural Welding Code-Steel |
| Hot dip galvanizing | Standard | Steel thickness/mm | Mean coating thickness/μm | Metallic element | Content |
| Pole shafts,cross arms&bolted on accessories | ASTM A123/A123M-15 AS/NZS 4680 | >6 | 85 |
Mn
|
0.25%-0.40%
|
| <3-6 | 70 | ||||
| 1.5-3 | 55 |
Cu
|
<0.15%
|
||
| <1.5 | 55 | ||||
| Bolts,nuts&washers |
GB/T 5267.3-2008 (ISO 10684-2004) |
_____ | ≥ 54 | P |
<0.025%
|
| Foundation bolts | ASTM A153/A153M-09 | _____ | ≥ 54 |
S
|
<0.03% |
Profile:
| Place of Origin: | Jiangsu, China (Mainland) |
| Brand name: | JSBS |
| Color: | User-defined |
| Certificate: | ISO9001 : 2008 |
| Surface Treatment: | Hot Dip Galvanized |
| Service life: | More than 25years |
| Material: | Steel |
| Spare Parts: | Parts for connection or installation |
| Height: | 6-50m |
| Packaging details: | Standard seaworthy package(wooden boxes,cotton ,steel strip and other package)or as buyers' requirement |
1, wide application
2, standardized design
3, matured technology
4, good quality
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customized design is available. UEM & UBM are welcomed.
4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff.
5. Special discount and protection of sales are provided to our distributor.
6. Professional factory : We are manufacturer, specializing in producing all kinds of steel poles
for more than 10 years, competitive with good quantity.
7 Sample: We can send out sample for test in one week if the order quantity is big enough.
But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order.
8. As an honest seller, we always use superior raw material, advanced machines,
skilled technicians to ensure our products to be finished in high quality and stable feature.
Production Process
- Raw material test
- Cutting
- Bending

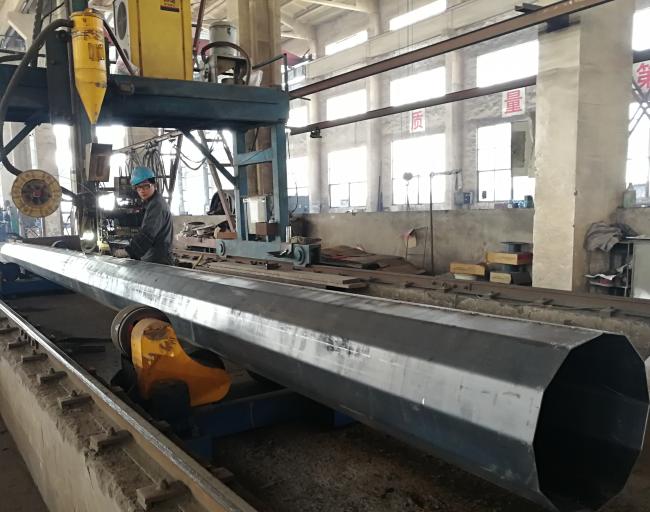

- Welding (longitudinal )
- Dimension verify
- Flange welding
- Hole drilling
- Calibration
- Deburr
- Galvanization or powder coating or Bituminous painting
- Recalibration
- Packages
The competitive advantage of product line:
Production Capacity:
| Product Line Name | Production Line Capacity | Actual Units Produced(Previous Year) |
|---|---|---|
| Electrical Equipment & Supplies | Steel Poles: 20000 tons/year |
Steel Poles: 13522 tons |
Production Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Puncher | JD21-100 | 2 | 2.0 | Acceptable |
| Automatic drilling machine | PLD2016 | 1 | 1.0 | Acceptable |
| Radial drilling machine | Z3080X25, Z3050X16 | 8 | 5.0 | Acceptable |
| CNC twin press brake | Z-WPE500/645 | 1 | 5.0 | Acceptable |
| Steel rolling open machine | N/A | 1 | 3.0 | Acceptable |
| CNC laser cutting | SZQG-2 | 2 | 3.0 | Acceptable |
| Gantry type welding machine | LHA2800 | 2 | 3.0 | Acceptable |
| Flange welding machine | LH2515 | 1 | 2.0 |
Acceptable |
Testing Machinery:
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
|---|---|---|---|---|
| Load testing machine | N/A | 1 | 7.0 | Acceptable |
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.
Company Introduce:
Through the efforts of the company staff, the support and cooperation from all over the world. The company's products have been exported to Philippines, Malaysia, Australia, America, Africa, Latin America, Panama, Suriname, Costa Rica, Colombia, Jordan, Nigeria, etc. We have good export experience and with 1 container export to World in average every day.
