500KGS Design Load galvanized steel pipe with Bituminous Painting 30 m /s Wind Speed

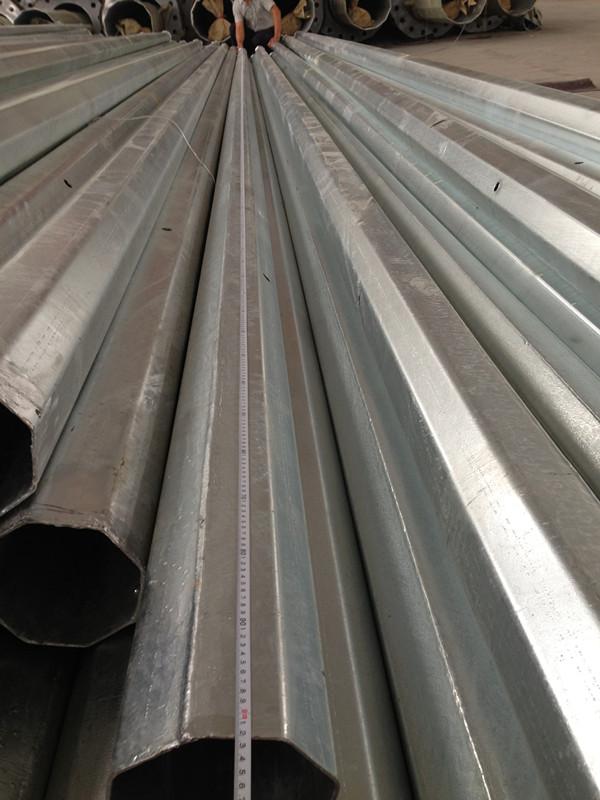

500KGS Design Load Low Voltage Hot Dip Galvanized Electric Metal Steel Pole with Bituminous Painting
Specification
| Type | Burial |
| Applicant | Electrical Distribution n Power Line |
| Shape | Octagonal |
| Material |
Applied to the material of general-purpose steel GB/T1591-2008, Q235, Q345 used in China. |
| Tolerance of dimension | +- 2% |
| Power | 10 KV ~550 KV |
| Safety Factor | Safety factor for conducting wine : 8 Safety factor for grounding wine : 8 |
| Design Load in Kg | 300~ 1000 Kg applied to 50cm from the top pole |
| Surface treatment | Hot dip galvanized in accordance with ASTM A 123. |
| Section | One |
| Design of pole | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour . 30 m /s |
| Minimum yield strength | 355 mpa |
| Minimum ultimate tensile strength | 470 mpa |
| Max ultimate tensile strength | 630 mpa |
| Standard | ISO 9001 : 2008 |
| Painting | Bituminous Painting |
| Welding | Welding complies with AWS D1.1 standard. |
| Thickness | 3.0mm, 3.5mm, 4.0mm |
| Production Process | Raw material test → Cutting →Molding or bending →Welding (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration→ Deburr →Galvanization or powder coating ,painting →Recalibration →Thread →Packages |
| Advantage |
|
Description
Philippines Nea Standard poles 25FT, 30FT, 35FT, 40FT,45FT
|
Height |
Thickness |
Butt Diameter |
Tip Diameter |
Design Load |
Yield Stress |
Zinc Coating |
| 25 | 2.5 | 152 | 120 | 300 | 345 | 86 |
| 30 | 3.0 | 226 | 127 | 500 | 345 | 86 |
| 35 | 3.0 | 248 | 127 | 500 | 345 | 86 |
| 40 | 3.0 | 317 | 127 | 500 | 345 | 86 |
| 45 | 4.0 | 328 | 127 | 750 | 345 | 86 |
Material Test:
1. All of our material are purchased from famous mill factory to assure the quality.
2. A mill certificate issued by the mill factory with stamp and signature must be provided before
unload the material in our factory;
3. Before put into production, all the material must pass the chemical and physical analysis to
make sure that they have met the requested strength and component.
Production Process
- Raw material test
- Cutting
- Bending
- Welding (longitudinal )
- Dimension verify
- Flange welding
- Hole drilling
- Calibration
- Deburr
- Galvanization or powder coating or Bituminous painting
- Recalibration
- Packages
Terms and Conditions
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.

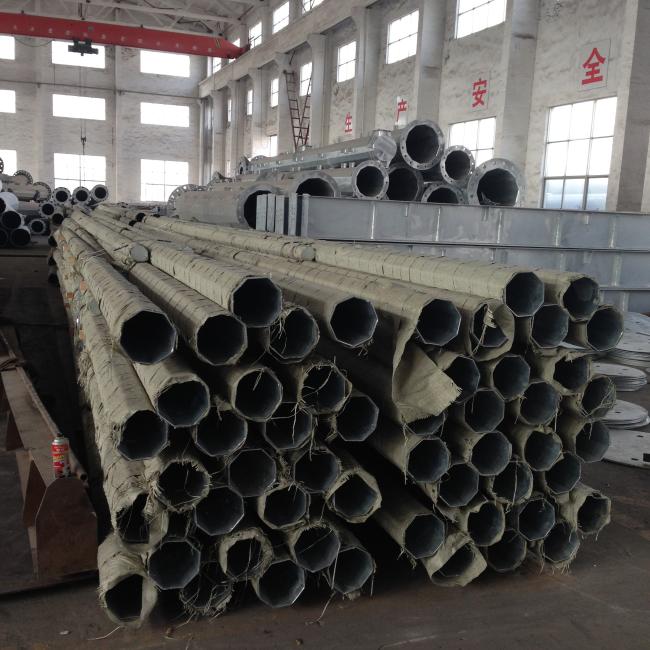

5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’ requirement.
