6m Single Arm Conical Shape electric light pole residential light steel poles
6m Single Arm Conical Shape Hot Dip Galvanized Lighting Steel Post Steel Pole
Material
Usually we use Q235 or Q345 for lighting poles.
Q235 equipment to SS400, ASTM A36. Min Yield Stress 235 Mpa.
Q345 equivalent to S355JR. Gr 50. Min Yield Stress 345 Mpa.
After purchasing the steel sheet, we check the raw material in our lab test room. We have carbon sulfur silicon analyzer to chek the elements of the steel sheet. Silicon less then 2%. We'll return the raw material if they are unqualified. We make steel poles with good quality from the first beginning.
Specifications
| Height | 6m |
| Application | Road ,Street, Highway, etc |
| Shape | Conical |
| Lamp Power | 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
| Arm | Single curved end |
| Lighting Fixture | IP 65 |
| Working Atmosphere of Lighting Fixture | -35℃~+45℃ |
| Surface Treatment | Hot dip galvanized with ASTM A 123, color as request. |
| Safety | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Min Yield Strength | 355 mpa |
| Min Ultimate Tensile Strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Thickness | 3mm |
Description:
Our lighting steel poles are non-standarded. We usually manufacture the poles according to cliens' various drawings or detailed specifications. So please offer us the drawing first and then we can give you the accurate quotation after calculating the weight accroding to the drawing. Of course, we can give you some advice if you are a new buyer and have no drawing.
We offer ODM and OBM Service.
Manufacturing
Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shearing machine, shearing machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with best quality.
Our welding penetration rate is above 95%.
After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanizing, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
We do the galvanization thickness test, load test and physical mechanical test in our factory. If clients request, we can do a third-party test like SGS, CCIC test for our clients.

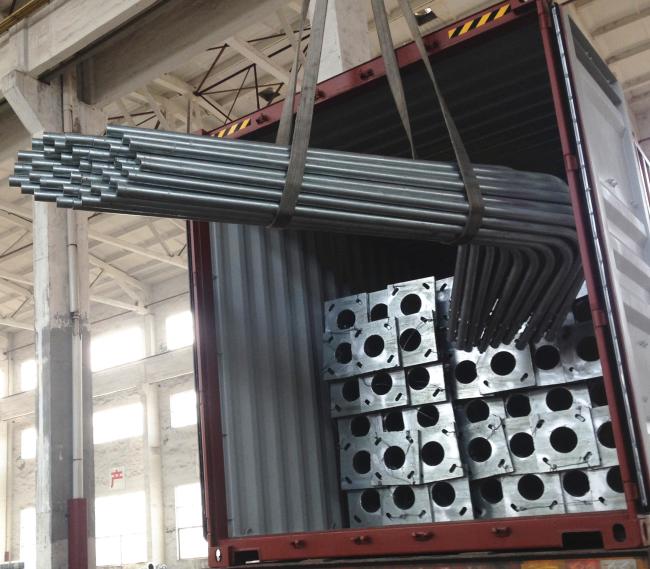

Delivery
Our nearest port is Shanghai Port. We normally use plastic sack to pack the poles and use 40HQ containers to delivery. Our Port limit weight for a 40HQ is 26 tons.

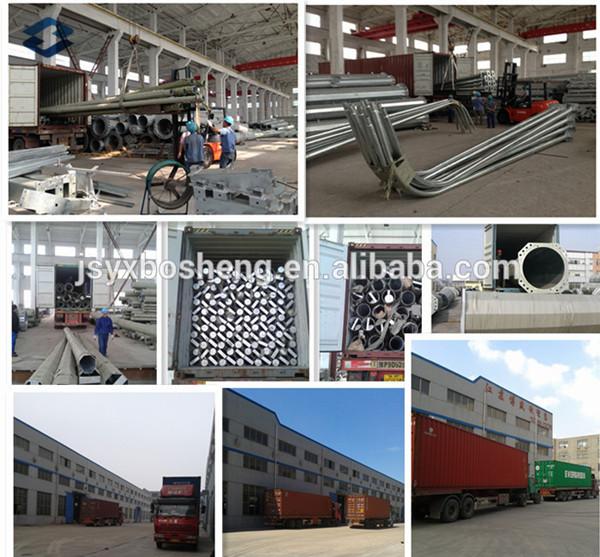

Factory Profile
Jiangsu Baojuhe Science and Technology Co.,Ltd. is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.
Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.
FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
4. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.
