69KV Anticorrosive Steel Utility Pole 6M - 12M Height galvanized metal posts
69KV Hot Dip Galvanized Anticorrosive Steel Utility Distribution Power Pole
Specification
| Material | High-quality steel Q235/SS400 , Q345 Gr50 , Q460 Gr65. | |
| Welding Technique | Automatic submerged arc welding | |
| Surface Treatment | Hot dip galvanizing in accordance with ASTM A123 | |
| Welding Standard | Longitudinal welding in accordance with AWS D1.1 | |
| Thickness of Zinc Coating | ≥ 86um | |
| Adhesive Force of Zinc Coating | GB2694-88 | |
| Anti-wind Capacity | 36.9m/s | |
| Anti-corrosion Lifetime | ≥25 years | |
| Coating Layer | Thickness | ≥100um on Average |
| Adhesive force | GB9286-880 | |
| Hardness | ≥2H | |
| Steel Pole Height Options | 3.5m~15m | |
| Street Lighting Poles Type Options | Conical, polygonal | |
Description
To design the practical poles for customers use, normally we need customer to provide us some parameter, like as following :
- Pole top design load
- Where is the position of the load , the distance from the top
- The wind Speed
- How will the wire distribute
- Pole type with Burial Type or Base Plate type
- The connections mode , use slip joint or flange
- and others we can further more discuss when we need.
- A factory certificate issued by the factory with stamp and signature must be provided before unloading the material in our factory , otherwise we have rights to refuse.
- Before put into production , all the material must be passed the chemical and physical analysis to make sure that they have met the requested strength and component.
- Inspection
Accessories:
1. Pole
2. Base Plate
3. Pole Top Cap
4. Butt Bearing Plate
5. Holes
6. CrossArm
7. Grounding Nut & Bolts
8. Anchor Bolts
9. Climbing Rungs
10. Identification Plate
11. Bituminous Painting if needed
12. Hot dip galvanized.

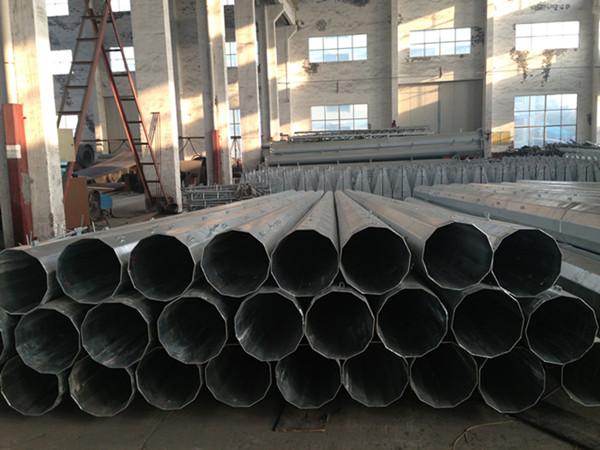

Production Line
Our factory owns advanced production lines and machines including bending calibration machine, hydraulic plate shearing machine, cutting machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with best quality.
After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
Terms and Condition
1. Price Term: EXW, FOB, CFR or CIF.
Ø EXW: Poles Cost
Ø FOB : Pole Cost + Land Transportation + Fee on Port
Ø CFR : Pole Cost + Land Transportation + Fee on Port + Sea Freight
Ø C I F : Pole Cost + Land Transportation + Fee on Port + Sea Freight + Insurance.
2. MOQ: One 40FT Container.
3. Payment Term: Typically 30% by T/T as deposit, balance by T/T or L/C at sight before shipment. Other
payment way can be negotiated.
4. Delivery Time: 15 working days per container after PI / drawing / prepayment confirmed.
5. Package: Normally wrapped by plastic bags or burlap cloth at the top and bottom,or according to clients’
requirement.
Factory Profile
Jiangsu Baojuhe Science and Technology Co.,Ltd. (previous name Jiangsu Bosheng Steel Poles Co.,Ltd.) is located in Heqiao Town Industrial Zone, Yixing District, Wuxi City, Jiangsu Province, China.
Baojuhe is the specialized manufacturer of various steel poles and steel components including street lighting poles, electric power poles, traffic signal poles, flag poles, wind power poles and microwave communication towers, etc.
Through Shanghai Port, which is one of the largest ports in China, we export poles to South America, Middle East, Africa, Australia, Philippines and other countries.
