ASTM A36 double arm street light pole , Hot dip galvanized commercial outdoor light poles

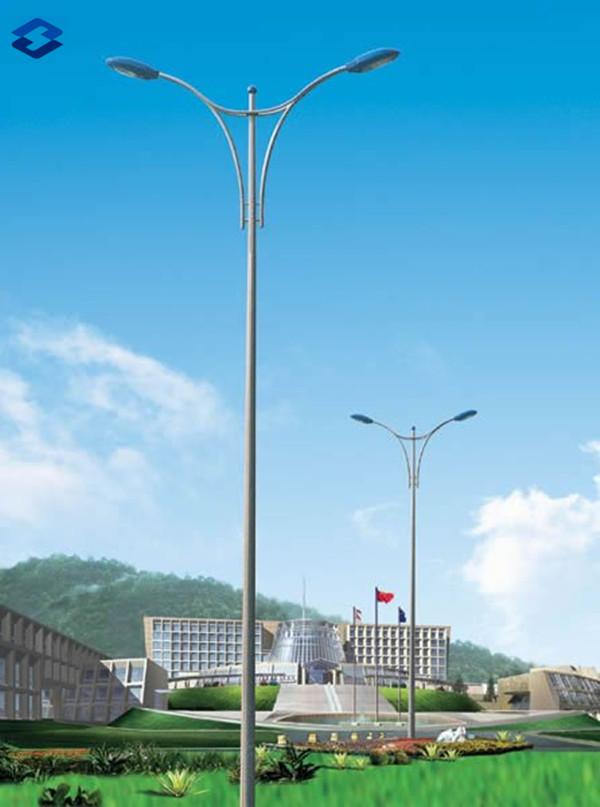

ASTM A36 Q235 Double Arm Hot Dip Galvanized Street Lighting Steel Pole
Product Description:
Material
Normally Q235 high quality mild steel
Mounting Height
5-12M
Shape of Pole
Round conical; Octagonal conical; Straight square; Tubular stepped; Polygonal
Shafts are made of steel sheet that folded into required shape and welded longitudinally by automatic arc welding machine
Brackets
Double brackets are in the shape and dimension as per customer's requirement
Welding
Welding confirms with international welding standard of CWB. No crack, no leakage welding, no bite edge, weld smooth level off without the concavo-convex fluctuation or any welding defects.
Base plate mounted
Base plate is square or round in shape with slotted holes for anchor bolts and dimension as per customer's requirement
Ground mounted
The length buried underground as per customer's requirement
Galvanizing
Hot dip galvanization with thickness of 80-100µm average. Inside and outside surface anti-corrosion treatment by hot dipping acid. Zinc coating is more than 85 um thick, which is in accord with GB/T13912-92 standard.
Specifications
| Height | 5 m to 12m |
| Application | Road ,Street, Highway, etc |
| Shape | Conical |
| Lamp Power | 20 W- 400 W (HPS/MH) 220V (+-10%) /50Hz |
| Arm | Double |
| Lighting Fixture | IP 65 |
| Working Atmosphere of Lighting Fixture | -35℃~+45℃ |
| Surface Treatment | Hot dip galvanized with ASTM A 123, color as request. |
| Safety | Against earthquake of 8 grade |
| Wind Speed | 160 Km/Hour |
| Min Yield Strength | 355 mpa |
| Min Ultimate Tensile Strength | 490 mpa |
| Max ultimate tensile strength | 620 mpa |
| Standard | ISO 9001 |
| Thickness | 3mm |
Manufacturing
→Raw material test
→ Cutting
→bending
→Welding (longitudinal )
→Dimension verify
→Flange welding
→Hole drilling
→sample assemble
→ surface clean
→ Galvanization or powder coating ,painting
→Recalibration
→Packages
Our factory owns advances production lines and machines including bending calibration machine, hydraulic plate shears machine, shears machine, slitting machine, 208T hydraulic straightener, etc. All insure us to produce steel poles with best quality.
After the fabrication process as cutting plate, bending, forming, automatic welding, drilling holes, we get poles checked before galvanized, hot dip galvanized and powder coating and finally we get poles checked according to client's requirements.
Delivery
We normally use 40HQ containers and our Port limit weight for a 40HQ is 26 tons.
FAQ:
1. Port of Loading: Shanghai, China
2. Price term: EXW,FOB,CFR AND CIF.
3. Payment Term: 30%TT in deposit, 70%TT before shipment. Or LC.
4. Delivery: Based on your order quantity. Normally 15 days after receiving your deposit.
