1R1G1B Indoor Full Color Led Display 640*480mm Die Casting Cabinet
1R1G1B Indoor Full Color Led Display 640*480mm Die Casting Cabinet
P2 P2.5 Indoor Fixed Led Screen For Meeting 640*480mm Die Casting Aluminum Cabinet
Quick details of indoor fixed led screen
1. Die casting aluminum cabinet size with 640*480*59mm
2. Ultra high definition with>3840Hz high refresh rate, the running picture is smoother.
3. Full front maintenance design with magenets. easy and fast installation.
4. save erengy, more conductive to protecting the environment.
Specifications of indoor fixed led screen
| Item | P2 | P2.5 | P3.07 |
| Pixel pitch | 2mm | 2.5mm | 3.076mm |
| Module size | 320*160mm | 320*160mm | 320*160mm |
| Module resolution | 160×80 | 128×64 | 104×52 |
| Physical density | 250000 dots/㎡ | 160000 dots/㎡ | 105688 dots/㎡ |
| LED type | SMD1515 | SMD2020 | SMD2020 |
| Cabinet size | 640*480*59mm | 640*480*59mm | 640*480*59mm |
| Cabinet resolution | 320*240 | 256*192 | 208*156 |
| Cabinet material | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Maintenance way | Front | Front | Front |
| Best viewing distance | ≥2.5m | ≥2.9m | ≥3m |
| Best viewing angle | H: 160°; V:160° | H: 160°; V:160° | H: 160°; V:160° |
| Driving method (Constant Current) | 1/40 Scan | 1/32 Scan | 1/26 Scan, |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥800nits | ≥800nits | ≥800nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP43 | IP43 | IP43 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 |
Features of indoor fixed led screen
1. Die casting aluminum cabinet size with 640*480*59mm
2. High brightness.can be seen clear even in indoor strong light.
3. Suitable customed.It can be made into different shapes and sizes.Flexible and convenient to install and easy maintenance.
4. Long life.more than 100000hours.
Application of indoor fixed led screen

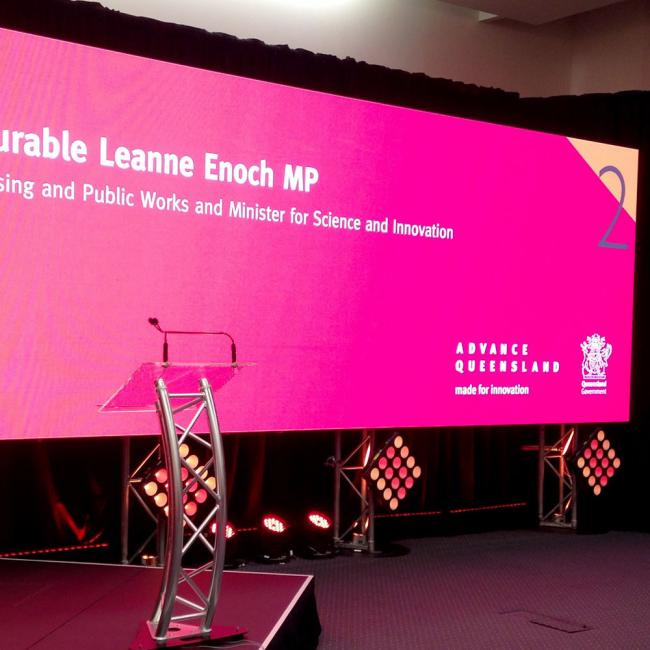

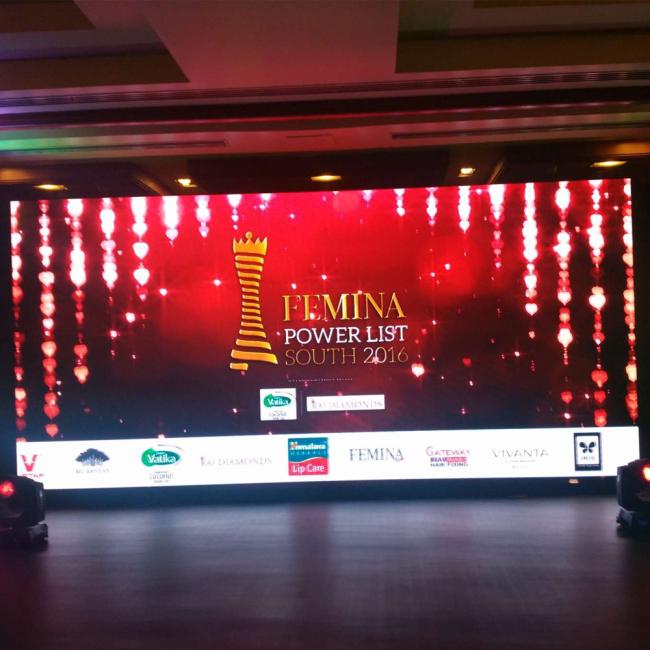

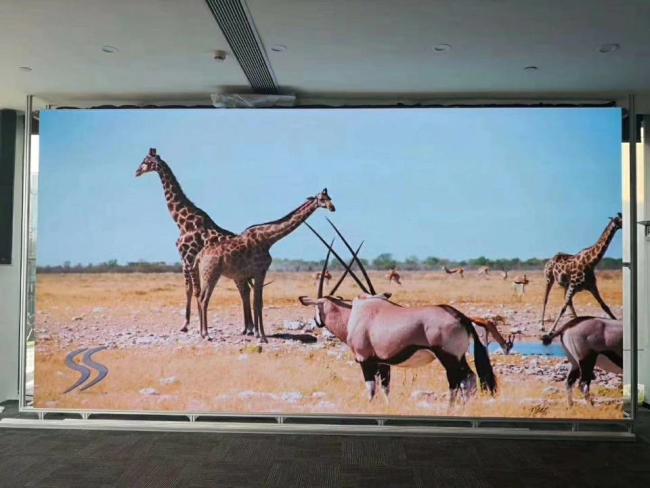

Indoor fixed led screen usually installed in shopping malls, supermarkets, banks, schools, offices and other places.
Why choose KAILITE?
1. We are a 14 years leading manufacturer specialized in led display industry.
2. If you choose us, we can help you save more money. We are the original manufacturer, no middleman make the difference.
3. High quality. Same product, Same price, Better quality.
4. Good service. We will try our best to serve you,we are standing by here to work for you at 7*24 hours.
After-sell Service:
1) Any time you need help, we are here.
2)Providing customer with the loading program, so they can use as soon as they install the
led screen,don't need to debug again
3)Free remote control debuggine serice will be provide for you.
4) Free technical training for how to use and handle the software. No worry about that.
FAQ:
1.Q:Do you support customized?
Yes.we support OEM/ODM services.
2.Q:How long will it take to receive the goods?
About 22-24 days.
3.Q:When can I arrange the production of my product?
As soon as the the deposit is paid, we will arrange production.
4.Q:Are you a factory?
Yes , we are. we can provide you factory direct price.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
