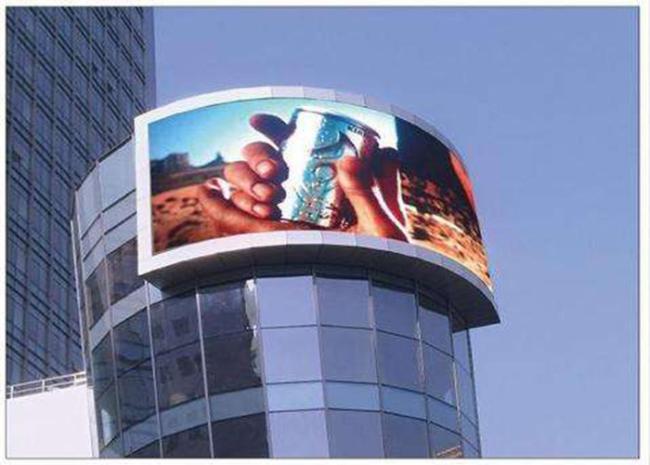

P4 P5 P6 Curved Outdoor Advertising LED Screen For Shopping Mall Downtown
P4 P5 P6 Curved Outdoor Advertising LED Screen For Shopping Mall Downtown
Quick details of Curved Outdoor Advertising LED Screen
1. Cabinet material: Iron
2. Input voltage: AC 110-220v±10%
3. Ingress protection: IP65
4. Grey Level: 12-16bit
5. Video frame rate: ≥60 Hz
Specification of Curved Outdoor Advertising LED Screen
| Item | P4 | P5 | P6 |
| Pixel pitch | 4mm | 5mm | 6mm |
| Module size | 320*160mm | 320*160mm | 192*192mm |
| Module resolution | 80×40 | 64×32 | 32×32 |
| Physical density | 62500 dots/㎡ | 40000 dots/㎡ | 27777 dots/㎡ |
| LED type | SMD1921 | SMD1921 | SMD3535 |
| Cabinet size | 960×960mm | 960×960mm | 960×960mm |
| Cabinet resolution | 240×240 | 192×192 | 160×160 |
| Cabinet material | Iron | Iron | Iron |
| Maintenance way | Front/Rear | Front/Rear | Front/Rear |
| Best viewing distance | ≥4m | ≥5m | ≥6m |
| Best viewing angle | H: 140°; V:140° | H: 140°; V:140° | H: 140°; V:140° |
| Driving method (Constant Current) | 1/10Scan | 1/8Scan | 1/8Scan |
| Video frame rate | ≥60 Hz | ≥60 Hz | ≥60 Hz |
| Refresh rate | 1920-3840Hz | 1920-3840Hz | 1920-3840Hz |
| Brightness | ≥5000nits | ≥5500nits | ≥6000nits |
| Grey Level | 12-16bit | 12-16bit | 12-16bit |
| Ingress protection | IP65 | IP65 | IP65 |
| Life Time | >100,000 Hours | >100,000 Hours | >100,000 Hours |
| The rate | <0.0002 | <0.0002 | <0.0002 |
Features of Curved Outdoor Advertising LED Screen
1. High brightness(≥5000nits), keep clear in the direct sunlight.
2. Low defective rate(<0.0002), long life span(>100,000 Hours).
3. Support remote control and change playing content.
4. IP65 Waterproof
5. Competetive factory price.
Applications:
1. Shopping mall 2. Downtown commercial center 3. large landmark building 4. Airport/Train station
After-sell Service:
1. Provide remote control debuggine service for free as you wish.
2. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staffs.
3. Free professional technical training.
4. We will reponse you anytime in 7*24 houres if you have any question about the led screen.
5. Warranty service.
FAQ:
1. What is the control system?
Novastar/LINSN/Colorlight for synchronous system, Novastar/Huidu for asynchronous system. we have several options for customer.
2. What about the package and shipping way?
Most situation packed with woden cas, it's up to customers; delivered by air shipping or sea shipping.
3. Can your factory accept OEM or ODM?
Yes, We can accept OEM and ODM,.and can print logo.
4. Is the product customizable?
Yes, we can customize the product according to customers' needs, you just need to provide the requirements details.
5. Do I need to buy other equipment to install LED screen?
You just need to prepare structure and installation tools.
