P10 Outdoor Full Color LED Display 6500cd SMD 3535
LED technology has revolutionized visual communication. As a premier application of this technology, LED screens are now universally used across various industries, delivering stunning visual experiences that make our world more vibrant and engaging.
SHENZHEN KAILITE OPTOELECTRONIC CO.,LTD is a professional LED display manufacturer offering complete, customized LED screen solutions at competitive prices with guaranteed quality.
- Personalized and complete solutions for your specific needs
- Factory-direct pricing with guaranteed quality
- Quick and convenient installation with easy maintenance
- 2-year comprehensive warranty
| Attribute | Value |
|---|---|
| Usage | Outdoor |
| Tube Chip Color | FULL COLOR |
| Display Function | Video |
| Pixels | 10mm |
| Brightness | 6500cd/sqm |
| LED chip | SMD 3535 |

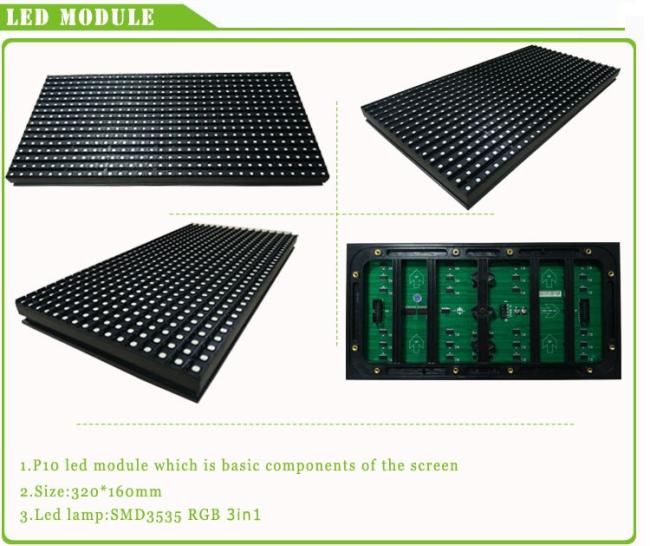

| Module size | 320*160mm |
| Viewing angle | H120° V120° |
| Life span | 100,000 hours |
| Warranty | 2 years |
| Driving method | 1/4 Scan Constant Current |
| Screen Dimension | Customized Size |
| Certifications | CE RoHS FCC Certifications |
| Item | PH10 |
|---|---|
| Module size | 320*160mm |
| Physical density | 10000dots/square meter |
| Pixel configuration | 1R1G1B |
| Module resolution | 32*16 |
| Module power | 70w |
| Recommend viewing distance | 10-70m |
| Maximum power consumption | 620w |
| Average power consumption | 250w |
| Cabinet size | W960mM×H960mm |
| Standard cabinet resolution | 96*96 |
| Weight | 35kg/panel |
| Frame frequency | ≥60 Hz |
| Refresh frequency | ≥1200Hz |
| Operating temperature/Humidity | -30℃~+45℃ 10%~95% |
| Ingress protection | Front:IP 67; Back:IP65 |
| Input voltage | 110-220V AC±10% |
| Control system | PCTV+DVI video card+control card+fiber |
| MTBF | >5,000 hours |
| Lamp Failure frequency |
Products are securely packed in wooden cases or flight cases and shipped via air or sea freight.
- 10+ years of LED screen manufacturing experience with guaranteed quality
- Factory-direct pricing (5%-10% lower than middlemen for equivalent products)
- Professional team of 15 sales and technical experts ensuring perfect results
- Customized solutions tailored to each customer's specific requirements
Yes, we offer a complete range of LED displays including indoor models (P2.5, P3, P3.91, P4, P4.81, P5, P6, P7.62, P10) and outdoor models (P5, P6, P8, P10).
Yes, we are a 10-year established factory offering a 2-year warranty with lifetime maintenance support.
Our displays support videos, flash animations, WAV/MIDI audio, PowerPoint presentations, images, and more.
Standard delivery time is 15-25 days after receiving deposit.
We are confident our service and quality will satisfy you! Trust us - we won't let you down.
