ROHS P4 Indoor Full Color Led Display Led Stage Screen For Business
64dots * 32dots P4 RGB Outdoor LED Screen, Pitch 4mm Full Color Led Message Signs
Quick Detail
1. Super Brghtness and High refresh rate for indoor usage
2. Blank lamp SMD2121 with full color
3. Simple cabinet without cover
4. Customer size and provide us with Length and Height or Area
5. Easy to install and it's suitable for all kind of weather
6. Modules: p2.5 p3 p3.91 p4 p4.81 p5 p6 p7.62 p10
Applications
------ Sdadiums led displays
------ Magnificent screen for Church
------Big Conference hall screen
------ Airport running message signs
------ Entertaiment led screen
Specifications
| Item P4 | |||
| Main parameters | Technical parameters | UNIT | parameters values |
|
Module Parameters |
Pixel pitch | MM | 4 |
| Panel size | MM | L256*H128 | |
| Physical density | /㎡ | 62500Dots | |
| Pixel Configuration | R/G/B | 1,1,1 | |
| Driving method | Constan current 1/16 scan | ||
| LED Encapsulotion | SMD | 2121 | |
| Display resulotion | Dots | 64*32 | |
| Moduel Power | W | 20 | |
|
Display Parameters |
Viewing Angle | Deg | H120V120 |
| Option Distance | M | 4-28 | |
| Maximum Power | W | 860 | |
| Cabinet Size | MM | L500*H500 | |
| Frame Frequency | Hz | ≥60 | |
| Refresh Frequency | Hz | ≥1200 | |
| Equilibrium Brightness | CD | ≥1200 | |
| Operation Temperatuer /Humidity |
℃ | -30~+45/ 10%~95% |
|
| Input Voltage | VAC | 220V±10%/110V±10% | |
| Ingress Protection | IP43 | ||
| Gray Scale/Color | ≥16.7M color | ||
| Brightness Contral | Manual/Automatic | ||
| Input Signal | RF/S-Video/RFB/etc | ||
| Contral Systerm | PCTV+DVI video card+control card+fiber |
||
| MTBF | HOURS | >5000 | |
| Life Time | HOURS | >100,000 | |
| Lamp Failure Frequency | <0.0001 | ||
Features
1.High quality:
Use high quality LED with high luminous efficiency and low brightness decay to make the display stable.
2.Good effect:
To show vivid and clear pictures with high resolution, but low cost; Has good display effect in both pictures and letters because of using real pixel technology.The products support multiple display modes.
3.Easy maintenance:
Can fix the single point to save the maintenance cost.
4.Good uniformity:
Brightness difference within 10% between any two LEDs, to ensure the brightness and color uniformity of the display; Good uniformity in color solve the problem of mosaic well
5.Price
No. 1 cost effective. The price is very good, please contact us for an offer. You can compare and know!
6.Application
It's wide Application, such as stage rental events, exhibition, wedding, advertising, meeting room and so on.

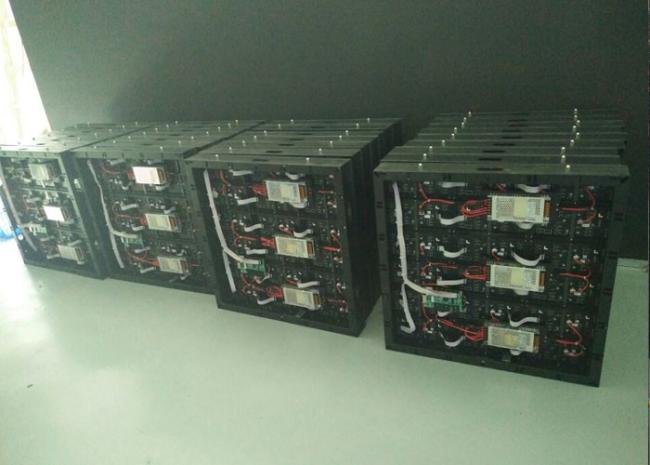

P4 LED cabinet
