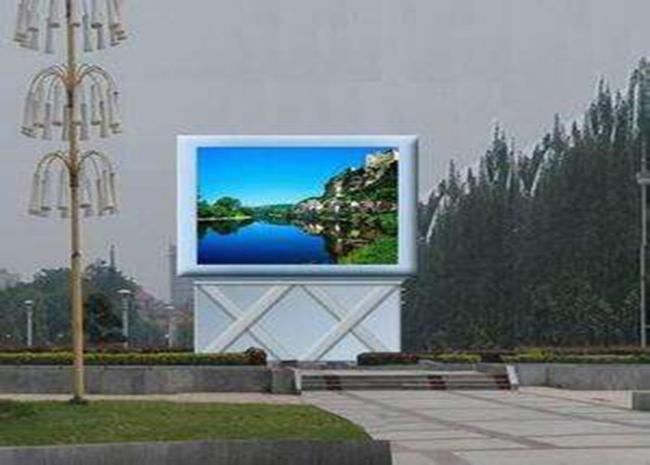

960Mm x 960mm HD Large Outdoor Rental LED Display Billboard High reliability
Price:
Negotiation
MOQ:
2 suqare meter
Delivery Time:
5--20 working days
Brand:
OEM/ODM
Product Description
960Mm x 960mm HD Large Outdoor Rental LED Display Billboard High reliability
Features
----- Feature -----
- Rich colors with three basic colors (red, green and blue) to form the unit boxes, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
- High brightness the products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine.
- Good effect the products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
- High reliability using distributed scanning technology and module design technology that make higher reliability and stability.
- Diversified display modes the products support multiple display modes.
- Easy operation the products adopt popular video playing software to facilitate system operations.
- Convenient installation and maintenance of display modules Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective.
Technical Parameters
| No. | Specifications | |
| 1. | LED chip | Taiwan/Silan/Cree/Cree Cotco/Epistar |
| 2. | Physical Pixel Pitch | 10mm |
| 3. | Physical Pixel Density | 10000dots/m2 |
| 4. | Pixel composition | 1Red, 1Green,1Blue |
| 5. | Moduel Size | 320mm*160mm |
| 6. | Moduel resolution | 32dots*16dots |
| 7. | Cabinet thickness | < 170 mm |
| 8. | Bracket of cabinet | Easy to install onto the LED cabinet and unistall . |
| 9. | Brightness | ≥ 800nits |
| 10. | Colors | 16.7million |
| 11. | Viewing angle | Horizontal ≥120°, Vertical : ≥ 120° |
| 12. | Viewing distance | 8m -150m |
| 13. | Soft Rubber Mask | To protect player and LED display itself . |
| 14. | Scan frequency |
≥600 Hz There will be one receive card in each cabinet ,so that the LED display won't sparked .Also it is very easy to move and connetct |
| 15. | Video Frame Rate | ≥150 fps |
| 16. | Color temperature | 6500°K to 9500°K adjustable |
| 17. | Control method | Controlled by PC, synchronous display |
| 18. | Life span( half brightness) | ≥100,000 hours |
| 19. | Weight | less than 45Kg /sqm |
| 20. | IP rate | IP65 ( front side and rear side) |
| 21. | Lowest power consumption | 50W/sqm |
| 22. | Peak power consumption | 600W/sqm |
| 23. | Input voltage | AC220V/50Hz ±10% or AC110V/60Hz ±10% or AC380V/60Hz ±10% |
| 24. | Operating Environment | Temperature:-25degree~+60degree Humidity:10%~95%RH |
| 25. | Operating system | Windows 98/2000/ME/XP |
| 26. | Type of video signal | S-video, composite video ,RGB ,VGA ,DVI |
| Payment terms |
30% deposit before production, 70% balance before shipping. -T/T -Paypal -Moneygram -Western Union -Alibaba Trade Assurance -Alibaba Secure Payment |
| Shipping |
LED module: 3 to 5 working days upon receiving deposit payment LED display: 10 to 15 working days upon receiving deposit payment |
| After-Sales-Service | -Lifetime with professional engineer support for free. -Within 2 yearS, supply spare parts for free if the machine has quality problem |
Application
- Commercial advertising LED display screen.
- Stadium perimeter LED display screen.
- Mobile trailer LED display screen for mobile media.
- Shopping mall LED display screen for logo showing.
- Bank & stock exchange LED display screen for rates showing.
- Train & bus station LED display screen.
- Air port LED display screen.
- Telecommunication LED display screen system for information showing and instruction.
