P6 P8 P10 Electronic Outdoor Led Display Screen Waterproof Commercial Advertising
Price:
Negotiation
MOQ:
2 suqare meter
Delivery Time:
5--20 working days
Brand:
OEM/ODM
Product Description
P6 P8 P10 Electronic Outdoor Led Display Screen Waterproof Commercial Advertising

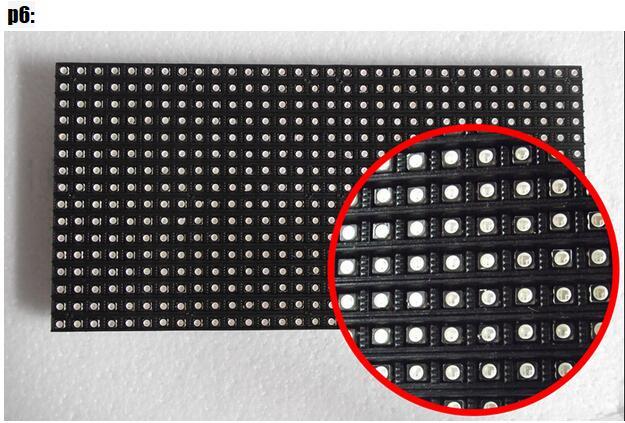

P6 Parameters
| Value | Parameters | Value | |
| Model | P6 | Refresh Rate | ≥1200HZ |
| Pixel pitch | 6mm | Blind spot Rate | ≤0.01% |
| Module Size(W×H) | 192x96mm | Gray scale per color | 65536 |
| Module Resolution(W×H) | 32*16dots | IP Grade(Front/Rear) | IP31/IP31 |
| Pixel Density | 27778dot/sqm. | Power consumption(max/avg) | 850 / 350W/sqm. |
| Brightness | ≥1200nits | Input voltage(AC) | 110~240v |
| Viewing angle(H/V) | 120° /120° | Operating temperature | -20°C~50°C |
| Best Viewing Distance | 6-20m | Operating humidity | 10%~90% |
P8 Parameters
| Value | Parameters | Value | |
| Model | P8 | Refresh Rate | ≥400HZ |
| Pixel pitch | 8mm | Blind spot Rate | ≤0.01% |
| Module Size(W×H) | 256*128mm | Gray scale per color | 65536 |
| Module Resolution(W×H) | 32*16dots | IP Grade(Front/Rear) | IP65/IP54 |
| Pixel Density | 15625dot/sqm. | Power consumption(max/avg) | 900 / 450W/sqm. |
| Brightness | ≥7500nits | Input voltage(AC) | 110~240v |
| Viewing angle(H/V) | 110° /70° | Operating temperature | -20°C~50°C |
| Best Viewing Distance | 10-200m | Operating humidity | 10%~90% |
P10 Parameters
| Value | Parameters | Value | |
| Model | P10 | Refresh Rate | ≥400HZ |
| Pixel pitch | 10mm | Blind spot Rate | ≤0.01% |
| Module Size(W×H) | 160x160mm | Gray scale per color | 65536 |
| Module Resolution(W×H) | 16*16dots | IP Grade(Front/Rear) | IP65 |
| Pixel Density | 10000dot/sqm. | Power consumption(max/avg) | 900 / 450W/sqm |
| Brightness | ≥7500nits | Input voltage(AC) | 110~240v |
| Viewing angle(H/V) | 110° /70° | Operating temperature | -20°C~50°C |
| Best Viewing Distance | 10-200m | Operating humidity | 10%~90% |
Advantage:
- Long Time:
Lamp:EPISTAR, 2 years warranty, Working Time:10 years.
- Save-energy
IC: MBI5124, Working voltage: 5V, Save 35%, Waterproof: ip65.
- Well-known brand power supply , saving energy and high efficiency.
P10 adopt Meanwell power supply, conversion ratio up to 82%, low heat dissipation and long life span. Normal power supply conversion ratio is under 80%, and high heat dissipation, not stable, low cost.
Packaging & Delivery
Packaging Details
- Air freight case
- Wooden case
- Carton-box case led display
Delivery Detail
- 7-15 working days after deposit payment accept
