P4 Indoor Full Color Led Display , HD LED Screen For Wedding / Party / Activities Stage
P4 Indoor Full Color Led Display , HD LED Screen For Wedding / Party / Activities Stage
Product Description
P4 outdoor LED Display for all kinds of word, text, graph, picture, video, 2-dimention, 3-dimention cartoon and other information with your PC does synchronously or asynchronously

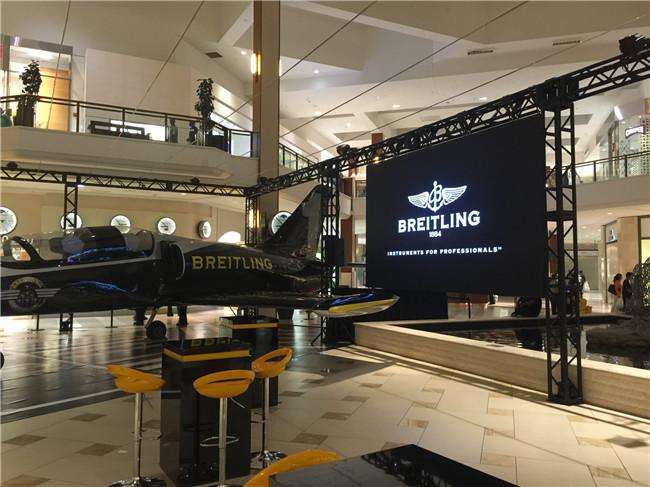

Application:indoor full color SMD P4 LED display, Advertising LED display,Rental LED screen,Stadium LED display,LED sign,Stage LED Display,Mobile LED display,LED Video Wall,Traffic
Parameter
|
P4 Full Color indoor LED SCREEN |
||
|
Item |
Unit |
Parameter |
|
Pixel Pitch |
mm |
4 |
|
Pixel Density |
dots/sqm |
62500 |
|
Resolution of Module |
dots |
64*32 |
|
Module Size |
mm |
256*128 |
|
HUB |
|
75 |
|
Pixel Configuration |
1R1G1B |
|
|
Chip Brand of LEDs |
Epistar/Sanan/Nationstar |
|
|
Module Weight |
kgs/pc |
0.25 |
|
Brightness (White Balance) |
nits(cd/sq.m) |
6500 |
|
Scan Mode |
1/16 Scan |
|
|
Best View Distance |
M |
4-80 |
|
Viewing Angle-Horizontal |
deg. |
140 |
|
Viewing Angle-Vertical |
deg. |
120 |
|
Max. Power Consumption |
W/sq.m |
850 |
|
Avg. Power Consumption |
W/sq.m |
450 |
|
Working Voltage |
40A 5V |
|
|
Power Supply |
AC 110/220V |
|
|
Waterproof Grade |
IP43 |
|
|
Refresh Rate |
Hz/S |
1200 |
|
Display Color |
Full color |
|
|
Display Function |
Text,news,advertising,flash,stage |
|
|
Input Signal |
RF,S-Video,RGB,RGBHV,YUV,YC,SDI,HD-SDI,DVI |
|
|
Ageing test |
More than 30 hours |
|
|
Defective Dot Rate |
|
<0.0001 |
|
Life Span |
hours |
100,000 |
|
MTBF |
hours |
>10,000 |
|
Working Temperature |
°C |
-20°-50° |
|
Working Humidity |
10%-90%RH |
|
|
Control System |
Synchronization or Asynchronization |
|
|
Quality Certificate |
ETL,CE,RoHS,TUV,FCC class A,ISO9001:2008 |
|
|
Warranty |
2 Years |
|
|
Working Environment |
indoor |
|
Product feature
1. High brightness and definition.
2. No emissions, radiations, noise or chemical effluent
3. Full complete technical support and long lift time
4. The most attractive and multiple use presentation format
5. Easy operation and control
6. Simple installation and maintenance
About Us
SHENZHEN KAILITE Co., Limited is distinguished manufacturer, supplier and exporter of all smartest range of LED Display in China. Our Main Business is Produce various LED Display Module and LED Display Panel for Customers' assemble. It' s available supply all the components for assemble LED Display or LED Message Signs. Besides, we focus on offering whole proposal for LED Display Projects and Solutions. Not only for regular type, we have continuously developed several Customized Screens and achieved some proud success in Solution Display Screens.
Service
1. We provide 2 years warranty.
2. 24hours online service for you.
3. You will get the satisfied answers from our professional team.
4. You will save your time and be at ease when you give the order to us.We will tell you the working progress termly.
FAQ
1. Are you a factory or trade company?
- KAILITE is a manufacturer with R&D development and production line on Baiwang Second Industry, XIli Town, SHENZHEN CHINA
2. What is the main products in your factory?
-Indoor and outdoor both on screen and module
3. What is percentage of your engineering and quality department?
- Engineering and Quality department takes 10% of the total employees.
4. How Long is your delivery time?
- That depends on the order qty,order within 500 pcs can be delivered within 5 days.
Thanks for your valuable time.Let this cooperation to be one of the best shopping experience for you.
