P5 P6 Waterproof Large Outdoor Led Display Screens 1R1G1B With MBI5124 IC
- Product Description
P4/P5/P6/P8/P10 outdoor LED screen adopts physical and virtual pixel technology which makes the picture more clear and vivid, no flicker and blind dots. The screen is manufactured in a waterproof and dustproof design so it can work very well in rain and sunshine. It can be assembled and disassembled very easy, and it is an ideal product for any kind advertisements.
It characterized by perfect vivid image, super brightness, high refresh rate, long life span and stable work, and waterproof, etc.
It is widely used in advertising, sports, industrial enterprise, transportation, stations, terminals, airports, construction, education system and other public places.
- Main advantages
1. New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
2. The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;
3. Module surface flatness ± 0.2mm, the entire screen has good flatness;
4.High uniformity display color;
5. For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
6. Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
7. Using fishbone bus line greatly reduces the contact problem;
8. IP65 grade for high performance waterproof and dustproof capability;
9. -25°C – 65°Cworking environment for outdoor display, adapted to the harsh environment.
- Technological Parameters
| Outdoor Advertising LED Display Sign P5mm | ||
| Pitch/mm | P5 | |
| Module size/mm | 160x160 | |
| Density of pixel/(dots/m2) | 40000 | |
| Pixel composition | 1R1G1B | |
| Led encapsulation | SMD2727 | |
| Resolution of module | 32x32 | |
| Optimum viewing distance | ≥5m | |
| View angle / ° | 140 H,120 V | |
|
Average power consumption/W/M2 |
600 | |
| Max power consumption/W/M2 | 1200 | |
| Size of cabinet/mm | 960x960 | |
| Resolution of cabinet | 192x192 | |
| Weight of cabinet/kg | 55 | |
| Driving method | 1/8 scan constant current | |
| Refresh rate Hz/S | ≥60 | |
| Luminance of white balance | ≥6500 nits | |
|
Operation of Environmental Temperature/°C |
below 30 to above 50 | |
| IP rating | Front,IP65;Rear,IP43 | |
| Working vlotage | 110-220 VAC/+/- 10% | |
| Grey scale/color | displaying colors≥16.7M(synchronized) | |
| Brightness adjustment |
256 levels of each color(manually), 100 levels of each color(automatically) |
|
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |
| Control system | linsn(sending card,receiving cards and Hubs) | |
| Average of non-failure life | over 50,00h | |
| Life span | over 100,000h | |
| Functionaless dot rate | below 0.0001 | |

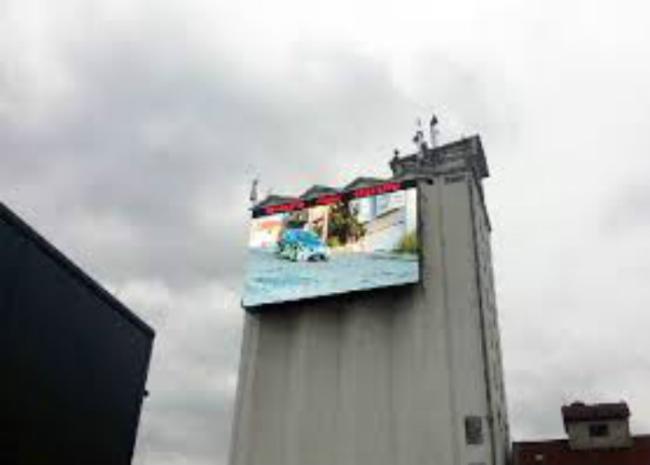

- Application of LED display screen
LED display,also called led screen, led video wall, or led sign, with its unique advantages,has gradually replaced the traditional billboards, light boxes,etc. LED display advertising has become a new force in the media industry.
Traditional advertising can only show pictures, But LED display/led video wall/led screen can perfect combine text, pictures, video, and sound with high resolution,high brightness and full color! LED display Advertising screen can easily attract the attention of pedestrians,and also are easy to remember,which can generate greater advertising effectiveness.
Led display screen now are widely applied in media advertising, transportantion,Security,
Real estate and Stage show background.
- Our service
1.Your inquiry related to our products or prices will be replied in 24hrs.
2.Well-trained and experienced staffs to answer all your enquires in fluent English .
3.OEM&ODM, any your customized screen we can help you to design and put into product.
4.Distributoer ship are offered for your unique design and some our current models .
5.Protection of your sales area, ideas of design and all your private information
- Trade terms
2. Technical material: English version user manual, installation manual And maintenance manual
4. Delivery: Approx 3-12 working days
6. Transportation: By sea or air or Express
