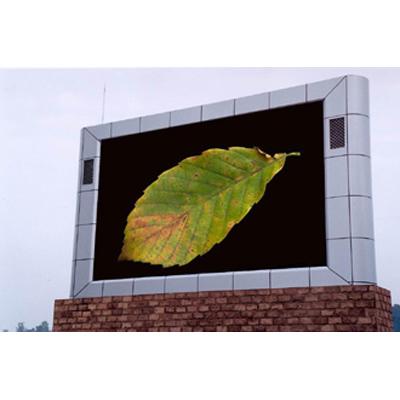

P5 Outdoor RGB Big Screen LED TV for Advertising With Linsn Synchronous Controller
P5 Outdoor RGB LED Display LED Advertising Screen Wall With Linsn Synchronous Controller
Quick Detail:
1, High resolution;
2, LED Chips: Epistar high brightness;
3, High brightness up to 7500cd/㎡;
4, Power Supply: Meanwell;
5, Control System: Linsn,Nova etc.
Specifications
| >>> Module Specification <<< | ||
| Item | Specification Parameters | |
| Pixel Pitch | 5 mm | |
| Pixel Density | 40000dots/m2 | |
| LED Shape | SM2727 | |
| LED Configuration | 1RGB full color | |
| Module Resolution | 32*32 dots | |
| Module Size | 160mm*160mm | |
| Driving IC | ICN2027 | |
| Max Current | 6 A | |
| Drive Mode | 1/8 scan | |
| >>> Cabinet Specification <<< | ||
| Cabinet Material | Iron/ Aluminum | |
| Cabinet Size | W640 x H640 mm | |
| Cabinet Resoltuion | W128 x 128 pixel | |
| Module Quantity | 16 pcs | |
| Cabinet Weight | 28 kg/pcs | |
| Surface Color | Black, grey etc. | |
| Cabinet Features | Fixed | |
| >>> Screen Specification <<< | ||
| Brightness | 7500 cd/m2 | |
| Viewing Angle | H/V 140° | |
| Best Viewing Distance | 5-150m | |
| Grey Scale | 14 bits | |
| Max Power Consumption | 650W/set | |
| Ave Power Consumption | 250W/m2 | |
| Working Voltage | 12V/24V | |
| Power Supply | 5V/40A G-energy | |
| Frame Frequency | ≥60Hz/s | |
| Refresh Rate | >2400Hz | |
| Signal Input | Composite, S-video, Component, VGA, DVI, HDMI, SDI, HD-SDI, etc. | |
| Controlling System |
PCTV non-linear editting card + DVI display card + main controller card + optical fiber transmission |
|
| Controlling Distance | By CAT5 Cable:100M; Multi-Mode fiber: 500M; Single-Mode fiber: 10KM | |
| Working Temperature | -30 to +60 ℃ | |
| Life Span | 100,000 Hours | |
| MTBF | 10000 Hours | |
| Pixel Failing Rate | 0.0001 | |
| IP Rate | IP65 | |
Features
- Rich colors: with three basic colors (red, green and blue) to form the unit boxes, making the electronic displays showing rich colors, high saturation, and high resolution, and also enabling them to show high frequency dynamic images.
- High brightness: the products adopt super-high brightness LED, so that you can see clearly from a long distance even in strong sunshine.
- Good effect: the products adopt non-linear calibration technology to realize clearer images with stronger feeling of layers.
- High reliability: using distributed scanning technology and module design technology that makehigher reliability and stability.
- Diversified display modes: the products support multiple display modes.
- Easy operation: the products adopt popular video playing software to facilitate system operations.
- Convenient installation and maintenance of display modules
- Energy saving and environment protection, antistatic, dust-proof, good heat dissipation, cost-effective
1. Supplying Perfect Display Effect Products
----- High brightness, high refresh rate, large viewing angle and clearly display effect with easy use control system; Aluminum alloy material both for fixed installation and hanging rental.
2. Offering Attractive Factory Price
----- We are a professional manufacturer, has its own factories and production lines. Our price is more competitive, quality is more reliable.
3. Technology Training
----- 1. We provide the technology training for free, which contains the operation training and maintenance training in the factory.
----- 2. We will send our engineers to your country by negatiation.
4. CAD Drawing and Fixing
----- 1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.
----- 2. We will send our engineers to your place if we are expected after our negotiation.
5. Warranty policy
----- 1. All products and accessories have been tested before ship out.
----- 2. All products have 1~2 years warranty.
6. Good After-sales Service
----- We offer free technical guidance. We have a professional service team; All the Questions about our product will be replied within 24 hours.
Q1: How can I place an order?
A1: Please provide the details of your requirements as clear as possible. So we can send you the offer at the first time.
Q2: How can I pay?
A2: We support a variety of payment methods, the most common is the T/T.
Q3: Where is it used for?
A3: Indoor & rental use. Widely used for backdrop of staging event, rental business, live show, concert, etc.
Q4: How to protect power supply?
A4: Electrical peaks can put more force on the electrical components which will decrease life time .
It is wise to install a protection (voltage stabilizer) that can control the peaks.
