2000W Customized Submersible Ultrasonic Cleaner For Industrial cleaning , Adjustable Power
2000W Customized Submersible Ultrasonic Cleaner For Industrial cleaning Adjustable Power
Specification details:
Ultrasonic transducer box size (mm):600x500x100mm(LXWXH)
Housing material: SUS304/SUS316L
Surface finishing: Hard-Cr plating treatment (20+microns)
Ultrasonic frequency: 28KHz / 40KHz
Ultrasonic transducers: 40pcs
Ultrasonic power: 2000W
Electronic generator: LSG-2000, Ultrasonic generator work separately control transducers
power supply: AC 110V/220V or 220/240V, 1phase
Advantages of Ultrasonic Transducer generator system:
1. Same function with industrial ultrasonic cleaner, but price and shipping cost are cheaper.
2. Piezo electric ceramic type transducer.
3. Box size can be customized based on different cleaning requirement.
4. Easy for maintainence if not use for long time.
5. Multi frequency is also available. such as 28kHz & 40kHz
6. Install on customer existing tank.
7. With Cr-plating.
8. With flexible tube, easy to operation for different tank.
Specification of Transducer box:
| Model | Unit Size (mm) | Ultrasonic Power(W) | Frequency(kHz) | Transducers(pcs) | Material | Voltage |
| LS-06T | 280*180*100 | 0~300 | 20/25/28/40/68/80 | 6 | SUS304 / SUS316L | AC 100 ~ 120V, 50 / 60Hz; AC 220 ~ 240V, 50 / 60 Hz |
| LS-12T | 360*250*100 | 0~600 | 12 | |||
| LS-18T | 410*300*100 | 0~900 | 18 | |||
| LS-24T | 500*350*100 | 0~1200 | 24 | |||
| LS-30T | 550*420*100 | 0~1500 | 30 | |||
| LS-36T | 620*500*100 | 0~1800 | 36 | |||
| LS-48T | 750*600*100 | 0~2400 | 48 | |||
| Remark: 1. Number in the model means the quantity of transducer 2. Each transducer box is control by separate generator 3. Transducer box size & Frequency can be design based on requirement. 4. Hard-Cr plating for transducer install side 5. Rigid or Flexible tube is available 6. 1 year warranty |
||||||
ODM & OEM are accepted.
MOQ: 1 piece
Certification: CE & RoHS
Customer logo is welcome
Distributors are welcome

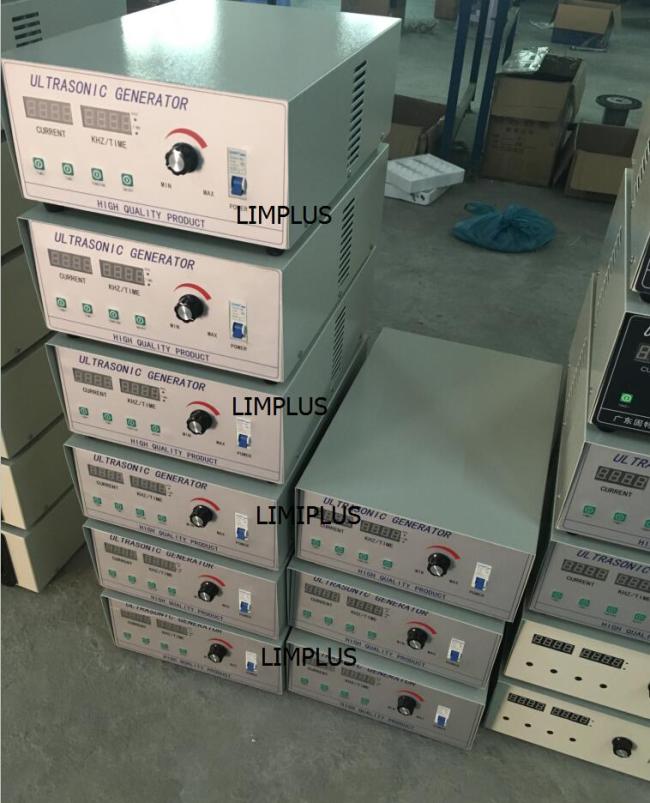

Controler Generator:
What frequency is better for my parts?
Frequency is suggested based on pollutants in the objects.
28kHz frequency is stronger, better for car/motor/truck/vessel parts clean (remove oils, grease, pastes, etc. )
40kHz is better for pcb boards, electronic parts, etc.
Higher precision goods, higher frequency.
Please feel free to send us email if any interest.
