6056M Deep Groove Ball Bearings Dimensions
Price:
100USD
MOQ:
2pcs
Delivery Time:
IN STOCKS
Brand:
OEM
Product Description
6056M deep groove ball bearings dimensions
| New designations | 6056M |
| Full size | 420X280X65 mm |
| Outside diameter(metric size) | 420MM |
| Inner diameter (metric size) | 280mm |
| Width (metric size) | 65mm |
| Weight(kgs) | 32KGS |
| Outer diameter(inch size) | 16.53 inch size |
| Inner diameter (inch size) | 11.02 inch size |
| Width (inch size) | 2.56 inch size |
| Radial dynamic load rating | 302KN |
| Radial static load rating | 405KN |

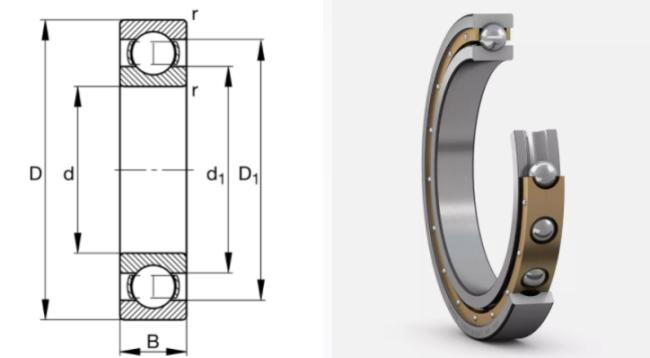

Details parameter and installation dimensions:
The bearing items:6056M
The bearing structure: Deep groove ball bearing
Rows number: single row
Inner diameter:280mm
Outer diameter: 420mm
Width:65mm
Cage material: Brass cage
Ring material: Chrome steel
Clearance:C0 C3 group
Precision grade: P6 P5 grade
The delivery time: in stock
The bearing package: strong wooden case
The bearing HS code:8482102000
The bearing shipping term:By sea or by air
The bearing application:BILLET EXPANSION PRESS LOADING ARM
It matched bearing NU1056M for the gearbox of BILLET EXPANSION PRESS LOADING ARM.
