Slewing Bearing Ring Teeth RKS.162.0544 size 616x445.2x56mm
Price:
Negotiation
MOQ:
2PCS
Delivery Time:
30 days
Brand:
OEM
Product Description
Slewing Bearing ring teeth RKS.162.0544size 616x445.2x56mm

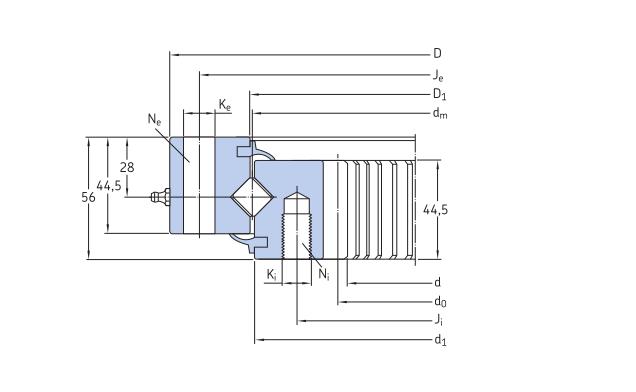

Single row crossed cylindrical roller slewing bearings RKS.162.14.0544 with dimension 616X445.2X56mm are simple in design, consisting of a one-piece inner and outer ring and cylindrical rollers separated by precision spacers and generally protected by integral seals.
Bearing factory code :RKS.162.14.0544
Structure:single row crossed roller slewing bearing teeth
Inner and outer ring raceways are surface induction-hardened while leaving the remainder of the rings, including the gears.
Boundary Size:616X445.2X56mm
Outer dia metric size:616 mm(24.25 inch size)
Inner dia metric size:445.2mm(17.52inch size)
Height:56 mm(2.2 inch size)
Weight:42 Kgs
Lubrication:After mounting has been completed, lubricant needs to be applied to the gear.
Seal :The permissible operating temperatures of the seal material range from –40 to + 110 °C.
Package: wooden case
Lubrication type:Grease lubrication
Service:Offer assembly drawing and technology knowledge
Structure:single row crossed roller slewing bearing teeth
Inner and outer ring raceways are surface induction-hardened while leaving the remainder of the rings, including the gears.
Boundary Size:616X445.2X56mm
Outer dia metric size:616 mm(24.25 inch size)
Inner dia metric size:445.2mm(17.52inch size)
Height:56 mm(2.2 inch size)
Weight:42 Kgs
Lubrication:After mounting has been completed, lubricant needs to be applied to the gear.
Seal :The permissible operating temperatures of the seal material range from –40 to + 110 °C.
Package: wooden case
Lubrication type:Grease lubrication
Service:Offer assembly drawing and technology knowledge
Bearing application
Slewing bearing is one of our main products.
1. four point contact ball slewing bearing (no gear, external gear, internal gear);
2. two row ball slewing bearing (no gear, external gear, internal gear);
3. crossed cylindrical roller slewing bearing;(no gear, external gear, internal gear);
4. three row cylindrical roller slewing bearing;(no gear, external gear, internal gear);
5. crossed tapered roller slewing bearing; (no gear, external gear, internal gear);
6. ball and roller combined slewing bearing.(no gear, external gear, internal gear);
