 Food extruder multi-stage tandem thrust bearings T-2390 factory

Tandem bearings T-2390 with size 23*90*99 mm used for The twin-screw extruder is partially developed on the experience and the knowledge derived from the understanding of single-screw extrusion cooking.

Bearing factory Number:T-2390
Item code:T-2390
Original place:China LuoYang
Lubrication:Oil lubrication
Boundary dimension: 23*90*99mm
Outer diameter D:90mm
Inner diameter d:23mm
The total height:99mm
Tandem stages number:three row stages
Bearing Material:High quality bearing steel
Bearing shaft diameter:0.9” inch size
Bearing outer diameter:3.54”inch size
Bearing width:3.9 inch size
Description:cylindrical roller thrust bearing
UPC/HS code:8482500090
Cage type Nylon or Steel or Brass Standard Cage
Precision grade:P5 P4 grade
C :420KN
CO:1190KN

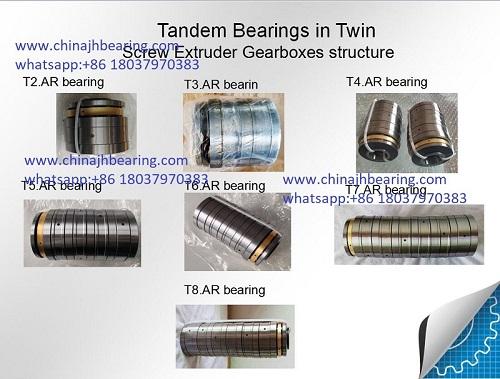

Tandem bearings have the following structural types:
1.)The basic type tandem bearing is to connect the shaft ring, the seat ring and the roller-cage assembly through the elastic spacer. This type of bearing is a separate structure, the parts can be disassembled, and it must be carefully installed and disassembled according to the numbering sequence provided by our company.

2.)The tandem bearing with shaft is a modified structure bearing. A shaft is inserted in the inner hole of the basic tandem bearing, and the bearing is fixed on the shaft with an elastic lock ring. The bearing parts of this type are inseparable, and it is very convenient to install and dismount the whole bearing during use.

3.)Tandem bearing with sleeve, sleeve is sleeved on the outside of the basic tandem bearing.
