 Feed Pig extruder bearing use thrust roller bearing T-53507 factory

Tandem bearings T-53507 size 23*70*193.5mm are capable of withstanding higher radial and axial loads, making them particularly suitable for high-load, high-speed industrial applications such as heavy machinery, drive systems, and precision machining equipment.

Bearing factory Number: T-53507

Item code:T-53507

Original place:China LuoYang

Lubrication:Oil lubrication

Boundary dimension: 23*70*193.5mm

Outer diameter D:70mm

Inner diameter d:23mm

The total height:193.5mm

Tandem stages number:six row stages

Bearing Material:High quality bearing steel

Bearing shaft diameter:0.9” inch size

Bearing outer diameter:2.75”inch size

Bearing width:7.61 inch size

Description:cylindrical roller thrust bearing

UPC/HS code:8482500090

Tandem thrust cylindrical roller bearings have a limited radial cross-section, super axial load capacity, long-term working life and minimum friction loss, so they are obtained in the parallel twin screw extruder gear transmission box in the rubber and plastics industry Very successful application. It will also be popularized and applied in other mechanical equipment.

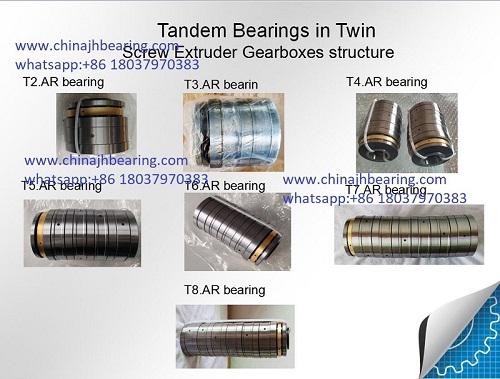

Tandem bearings have the following structural types:
1.)The basic type tandem bearing is to connect the shaft ring, the seat ring and the roller-cage assembly through the elastic spacer. This type of bearing is a separate structure, the parts can be disassembled, and it must be carefully installed and disassembled according to the numbering sequence provided by our company.

2.)The tandem bearing with shaft is a modified structure bearing. A shaft is inserted in the inner hole of the basic tandem bearing, and the bearing is fixed on the shaft with an elastic lock ring. The bearing parts of this type are inseparable, and it is very convenient to install and dismount the whole bearing during use.

3.)Tandem bearing with sleeve, sleeve is sleeved on the outside of the basic tandem bearing.

Tandem bearings consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard
axial cylindrical roller and bearing assemblies.
