 Food extruder multi-stage tandem thrust bearings T-2390 factory

Tandem bearings T-2390 with size 23*90*99 mm used for The twin-screw extruder is partially developed on the experience and the knowledge derived from the understanding of single-screw extrusion cooking.

Bearing factory Number:T-2390

Item code:T-2390

Original place:China LuoYang

Lubrication:Oil lubrication

Boundary dimension: 23*90*99mm

Outer diameter D:90mm

Inner diameter d:23mm

The total height:99mm

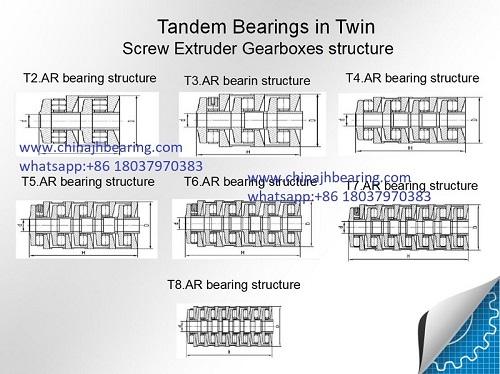

Tandem stages number:three row stages

Bearing Material:High quality bearing steel

Bearing shaft diameter:0.9” inch size

Bearing outer diameter:3.54”inch size

Bearing width:3.9 inch size

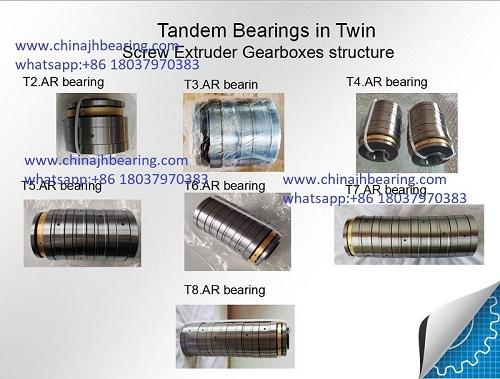

Description:cylindrical roller thrust bearing

UPC/HS code:8482500090

Cage type Nylon or Steel or Brass Standard Cage

Precision grade:P5 P4 grade

C :420KN

CO:1190KN

The package:strong carton

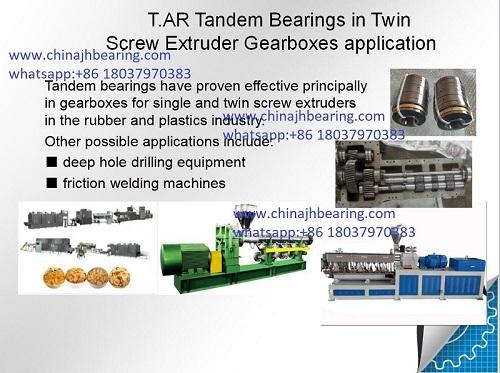

Extruders are used in the processing of plastics in powder or granulate form, mixed with stabilisers, parting agents and any colourings and fillers; they are conveyed, compacted, degassed, homogenised and finally pressed through a die into profiled tooling. In order to apply the necessary forces correctly, very high demands are placed on the extruder gearboxes. Small centre distances, are present in certain extrusion processes. As a result, the gearboxes have high power levels and the screws are subjected to very high axial forces.

In a twin screw extruder gearbox, high axial forces as well as high
torques must be transmitted. Due to the resulting radial forces in
combination with the small centre distances, special bearing
arrangements are necessary. The output shafts are subjected to
considerable flexing
