Cooper Split Roller Bearing 02B85M 85mm Bore 169.86mm OD Industrial

 twin screw extrudes machine tandem roller bearing T-81684 stock

Bearing factory Number: T-81684
Item code:T-81684
Original place:China LuoYang
Application in mainly equipment: plastic/rubber/pet food double screw extruder gearbox .
Its primary function is to distribute loads and enhance system stability through a tandem arrangement, thereby extending the equipment's service life.
Lubrication:Oil lubrication
Boundary dimension: 23*90*131mm
Bearing shaft diameter:0.9” inch size
Bearing outer diameter:3.54”inch size
Bearing width:5.16 inch size
Tandem stages number:three row stages
Bearing Material:High quality bearing steel
Description:cylindrical roller thrust bearing
UPC/HS code:8482500090
Outer diameter D:90mm
Inner diameter d:23mm
The total height:131mm
Cage type Nylon or Steel or Brass Standard Cage

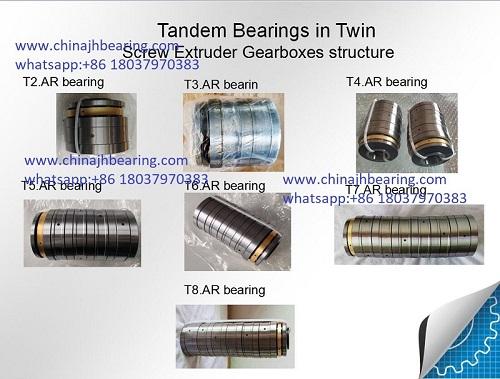

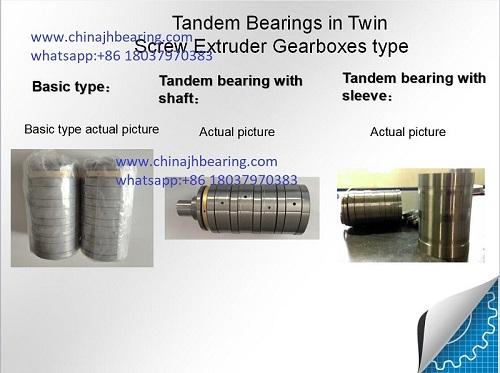

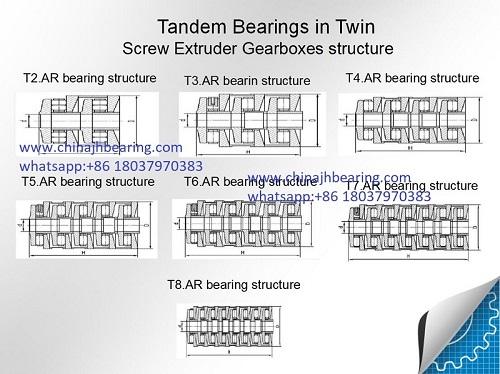

Tandem bearings consist of several axial cylindrical roller bearings arranged in line, A system of rings and washers matched to each other ensures that all stages of the tandem bearing are subjected to uniform load at all times irrespective of the ratio C/F. The rings and washers are made from hardened steel. Tandem bearings are predominantly fitted with standard
axial cylindrical roller and bearing assemblies.

Extruders are used in the processing of plastics in powder or granulate form, mixed with stabilisers, parting agents and any colourings and fillers; they are conveyed, compacted, degassed, homogenised and finally pressed through a die into profiled tooling. In order to apply the necessary forces correctly, very high demands are placed on the extruder gearboxes. Small centre distances, are present in certain extrusion processes. As a result, the gearboxes have high power levels and the screws are subjected to very high axial forces.
