RKS.061.25.1534 Slewing bearing with external gear 1449x1668x68mm

RKS.061.25.1534     Single row four-point contact ball slewing bearings

Dimensions - d (inside diameter) 1449 mm

Dimensions - D (outside diameter) 1668 mm

Dimensions - B (width) 68 mm

RKS.061.25.1534  Single row four-point contact ball slewing bearings are simple in design. They are particularly versatile and offer many advantages for applications where there are light-tomedium axial, radial and moment loads.
RKS.061.25.1534    The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN10083
Ball material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
RKS.061.25.1534   The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days

Generally, RKS.061.25.1534   slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically, RKS.061.25.1534   slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.

Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.

RKS.061.25.1534 Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines

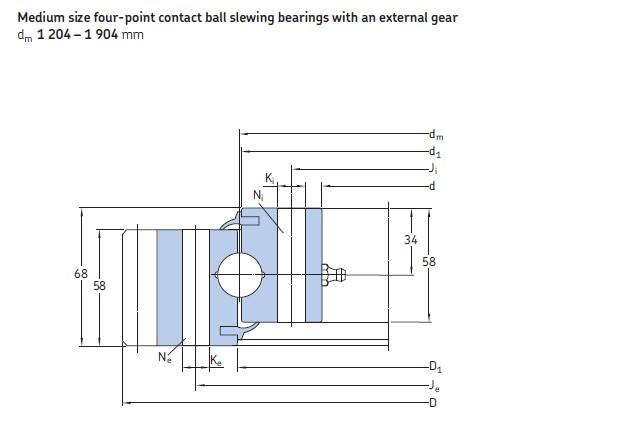

Single row four point contact ball slewing bearing.
It is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.

Slewing bearing is one of our main products.
1. four point contact ball slewing bearing (no gear, external gear, internal gear);
2. two row ball slewing bearing (no gear, external gear, internal gear);
3. crossed cylindrical roller slewing bearing;(no gear, external gear, internal gear);
4. three row cylindrical roller slewing bearing;(no gear, external gear, internal gear);
5. crossed tapered roller slewing bearing; (no gear, external gear, internal gear);
6. ball and roller combined slewing bearing.(no gear, external gear, internal gear);
