Slewing ball bearing RKS.062.20.0744 with internal gear 649.2x816x56 mm

Slewing ball bearing RKS.062.20.0744 with internal gear 649.2x816x56 mm

RKS.062.20.0744 SKF code    Single row four-point contact ball slewing bearings

RKS.062.20.0744  Slewing bearing with internal gear ,649.2x816x56 mm, JBT10471 Standard

Dimensions - d (inside diameter) 649.2  mm

Dimensions - D (outside diameter) 816  mm

Dimensions - B (width) 56 mm

 RKS.062.20.0744  Single row four-point contact ball slewing bearings are simple in design. They are particularly versatile and offer many advantages for applications where there are light-tomedium axial, radial and moment loads.


RKS.062.20.0744  The outer ring and inner ring material: 42CrMo, 42CrMo4V,50Mn in accordance with EN10083
Ball material: 100Cr6 bearing steel,in accordance with EN ISO683
Geart teeth accuracy grade: in accordance with ISO1328
Oil or grease material:Lithium grease
The inner ring and outer ring Material  hardness: quenching and tempering: HB229~269
Raceway case hardening :HRC55~62
RKS.062.20.0744    The package,: Inside packaging: plastic film + kraft paper + blue tape; Outside packaging: standard export free-fumigation wooden case. we can assure that the bearing shipping by sea or by air.
The delivery time:25-35 days

Generally, RKS.062.20.0744   slewing bearings are large-size rolling bearings that can accommodate axial, radial and moment loads acting either singly or in combination and in any direction. They can perform both slewing (oscillating) movements as well as rotational movements.
Basically, RKS.062.20.0744   slewing bearing consists of an inner ring , an outer ring and rolling elements−balls or cylindrical rollers−that are separated by polyamide spacers .The rings, one of which usually incorporates a gear , are provided with holes to accommodate attachment bolts. The holes may be threaded.
Generally, only the raceways in the rings are hardened and precision- ground. Integral seals  made of acrylonitrile- butadiene rubber (NBR) keep the lubricant in, and contaminants out of the bearing.

RKS.062.20.0744  Slewing bearings perform extremely well in a variety of applications such as:
• access platforms
• bucket wheel excavators
• conveyor booms
• cranes of all types
• small, medium and large excavators
• indexing tables
• ladle turrets
• offshore applications
• robots
• railway bogies
• rotary platforms
• stackers
• solar mirrors
• tunnel boring machines
• wind turbines

Bearing Parts
Steel ball/Roller:carbon-chromium bearing steel GCr15SiMn or GCr15 for rolling Material
Cage: include integral cage, segment cage and spacer-type cage. We use 20# steel or copper for integral and segment cages, PA 1010 resin or QA110-3-105 albronze for spacer-type cages.
Seals:uses NBR or VITON, few felted wool.

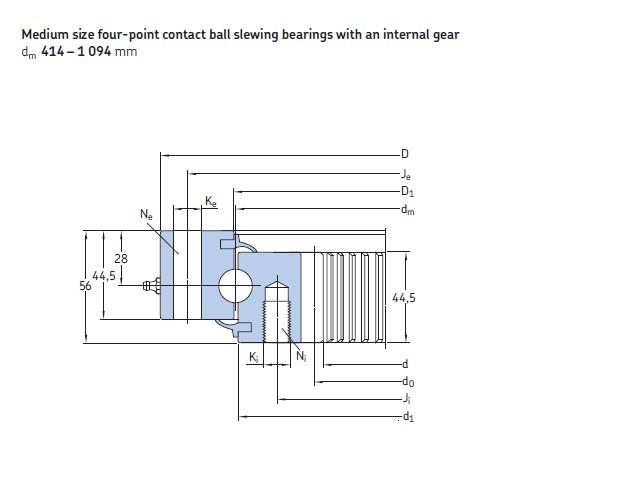

Single row four point contact ball slewing bearing.
It is composed of two seat rings. It has compact structure, light weight, and four-point contact between steel ball and arc raceway. It can bear axial force, radial force and overturning moment at the same time. The construction machinery of rotary conveyor, welding manipulator, small and medium-sized crane and excavator can be selected.
